Cylinder Stud Kit, HT Steel, Yamaha®, Various 400-450's, 1998-2013

Cylinder Stud Kit, HT Steel, Yamaha®, Various 400-450's, 1998-2013

SKU:80-82650

Regular price $97.66 USD
Regular price $97.66 USD Sale price $97.66 USD
Sale Sold out

California Prop 65

Yamaha® WR™ 400F 1998-2000
Yamaha® WR™ 426F 2001-2002
Yamaha® WR™ 450F 2003-2006
Yamaha® YFZ™ 450 2004-2013
Yamaha® YZ™ 400F 1998-1999
Yamaha® YZ™ 426F 2000-2002
Yamaha® YZ™ 450F 2003-2005

  • Nuts are machined from billet high tensile steel and heat treated
  • Studs are heat treated 180,000 PSI aircraft alloy steel
  • Both nut and stud have rolled threads for the strongest possible threads
  • Both nut and stud are black oxide treated for enhanced corrosion resistance


KPMI® Cylinder Studs are made from 180,000 psi yield strength, fine grain, heat treated, aircraft grade alloy steel. When you want a stud that meets proof-stress and maximizes clamping force, look no further. KPMI® “rolls” the threads, heat treats and then centerless grinds the entire body of the stud. Rolling the threads creates the toughest and strongest thread possible and centerless grinding removes notch sensitivity. The final process for all KPMI® Studs is to encase the entire stud with premium corrosion resistant treatment of Black Oxide. Congratulations on your choice to purchase a stud that meets and exceeds your stock-replacement of high-performance needs!
KPMI® nuts are single point machined from high tensile strength Aircraft Alloy Steel. During the machining process close tolerances and smooth surface finishes are maintained. Two critical factors for achieving correct fit and torque. After machining, the nuts are heat treated to a specific depth. This creates hard, wear resistant working surfaces, while retaining a ductile core to prevent cracking under load. The premium black oxide treatment provides excellent corrosion resistance and appearance.

Material H.T. Steel
Installation Instructions Click Here

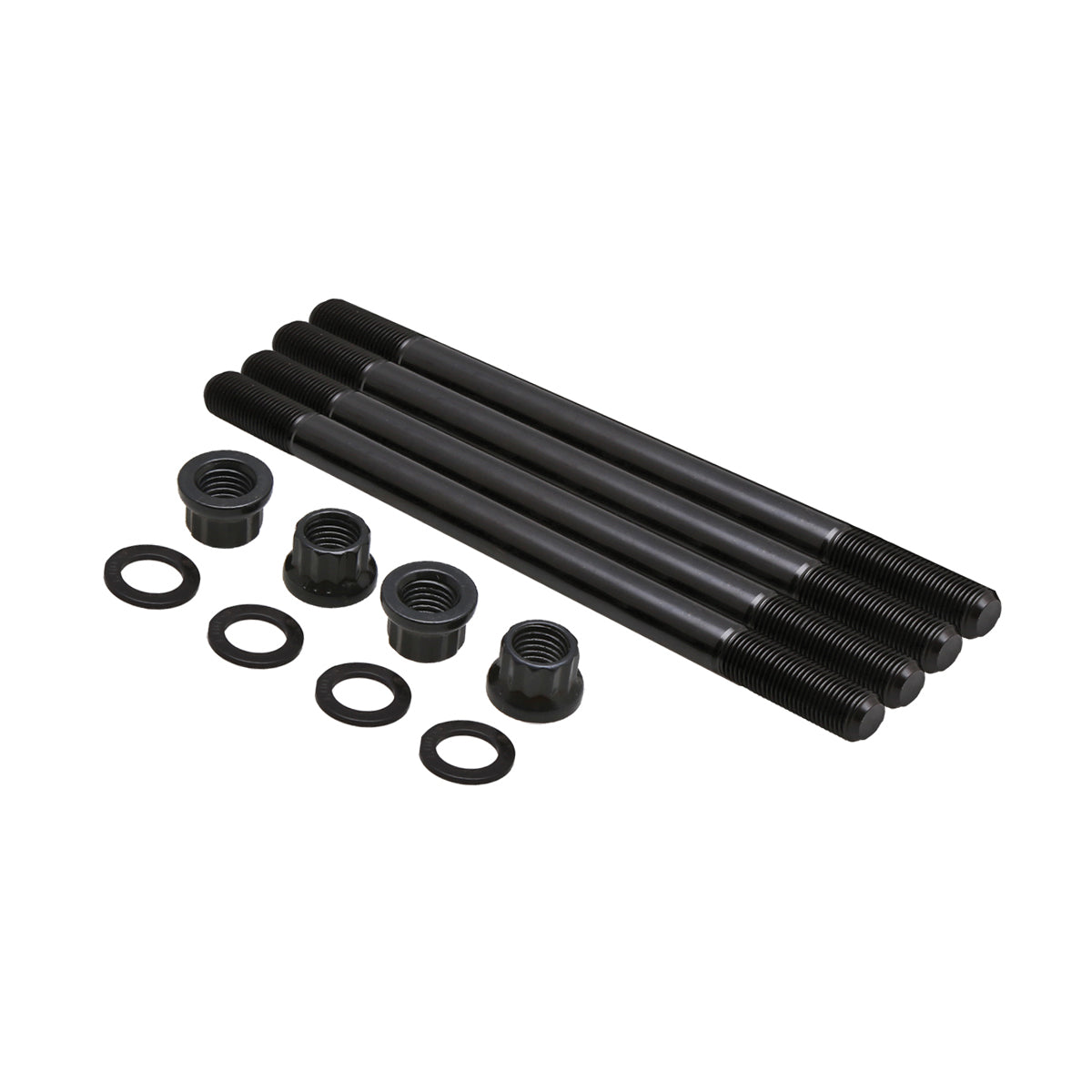

Quantity 4pcs. Studs / 4pcs. Nuts / 4pcs. Washers

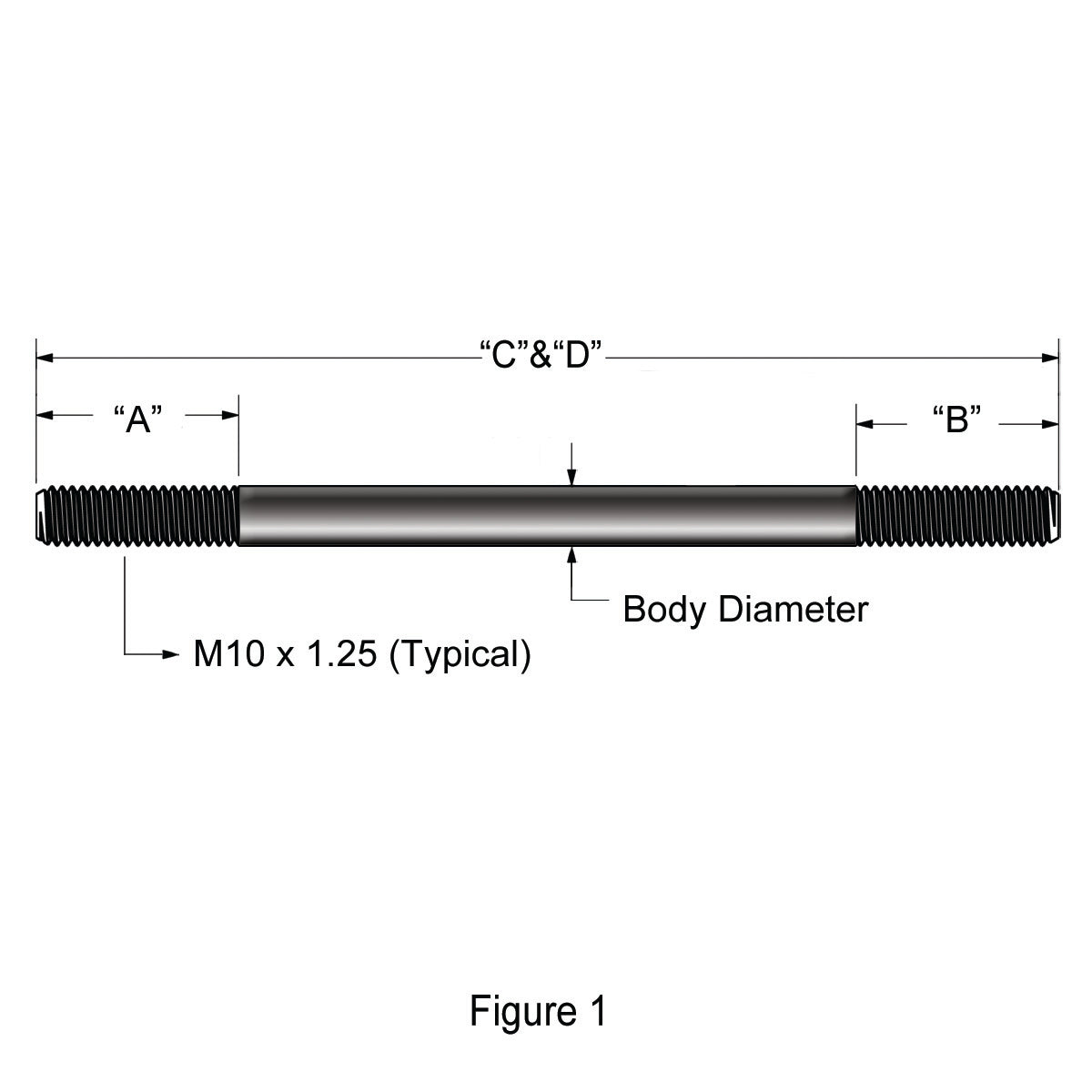

Body Dia. 0.358"
A 1.42"
B 1.42"
Overall Length "C" 6.7"
Overall Length "D" 6.5"
Unique Identifier No. FR327789_01GAUS
