Cylinder Head Service Kit, 0.480" Lift, Yamaha®, Various 700's, 2006-2023
Cylinder Head Service Kit, 0.480" Lift, Yamaha®, Various 700's, 2006-2023
SKU:80-82080
Regular price
$422.41 USD
Regular price
$422.41 USD
Sale price
$422.41 USD
Unit price
per
Yamaha® Grizzly™ 700 2007-2015
Yamaha® Grizzly™ 700 2019-2023
Yamaha® Raptor™ 700 2006-2023
Yamaha® Rhino™ 700 2008-2013
Yamaha® Viking™ 700 2014-2023
Yamaha® Kodiak™ 2019-2023
KPMI® is proud to introduce full CYLINDER HEAD SERVICE KITS. These kits contain all items to completely refresh and upgrade cylinder heads for popular Dirt / MX and Side x Side models with KPMI’s top quality racing valvetrain components.
Features:
- Save time money on your next cylinder head rebuild
- One package, everything you need for factory recommended valvetrain service
- Double your service life over OEM using KPMI® Valvetrain products
- Kitted with value added savings

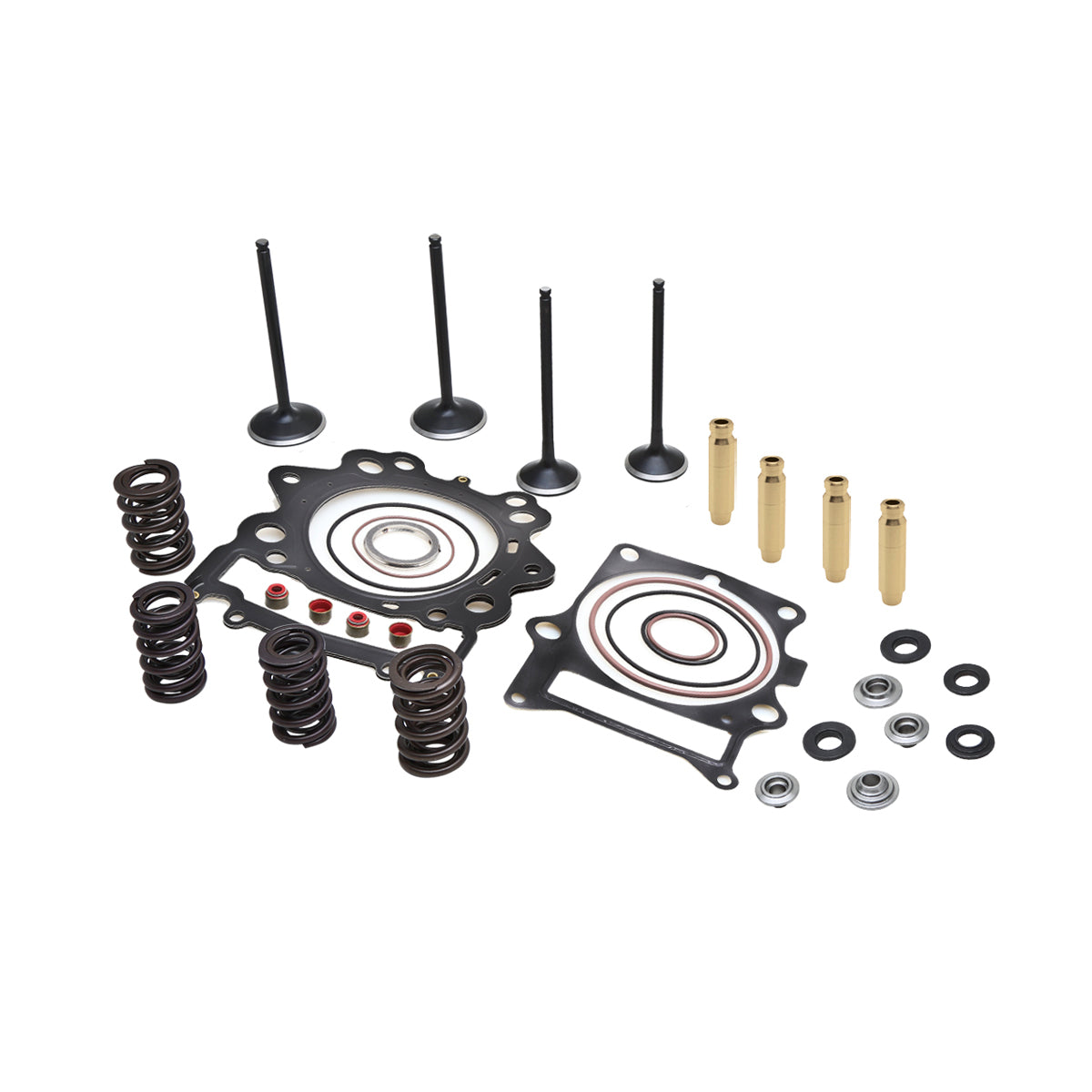

Kit Includes:
- Dual Spring Titanium Retainer Spring Kit, Which Allows for 0.350" Valve Lift
- Top End Gasket Kit by Cometic
- KPMI® C630 Bronze Standard Valve Guides
- KPMI® S.S. Black Diamond™ Valves, Stock Head Dia.
The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.
Installation Instructions |
Click Here |
Type | Intake/ Exhaust |
Retainer Material | Titanium |
Valve Lift | 0.480" |
Installed Height | 1.420" |
Seat Pressure | 54# |
Open Pressure | 195# |
@ Lift | 0.480" |
Valve Type |
Intake/ Exhaust |
Valve Material | Black Diamond™ Stainless |
Coating | Black Nitroneg |
Intake Head Diameter | 38.00mm / 1.496" |
Intake Stem Diameter | 6.0mm/ 0.2355" |
Intake Tulip | 11º |
Intake Overall Length | 4.025" |
Exhaust Head Diameter | 32.00mm / 1.260" |
Exhaust Stem Diameter | 6.0mm/ 0.2350" |
Exhaust Tulip | 25º |
Exhaust Overall Length | 3.785" |
Remarks | Standard |
Guide Type | Intake / Exhaust |
Guide Material | C630 Bronze |

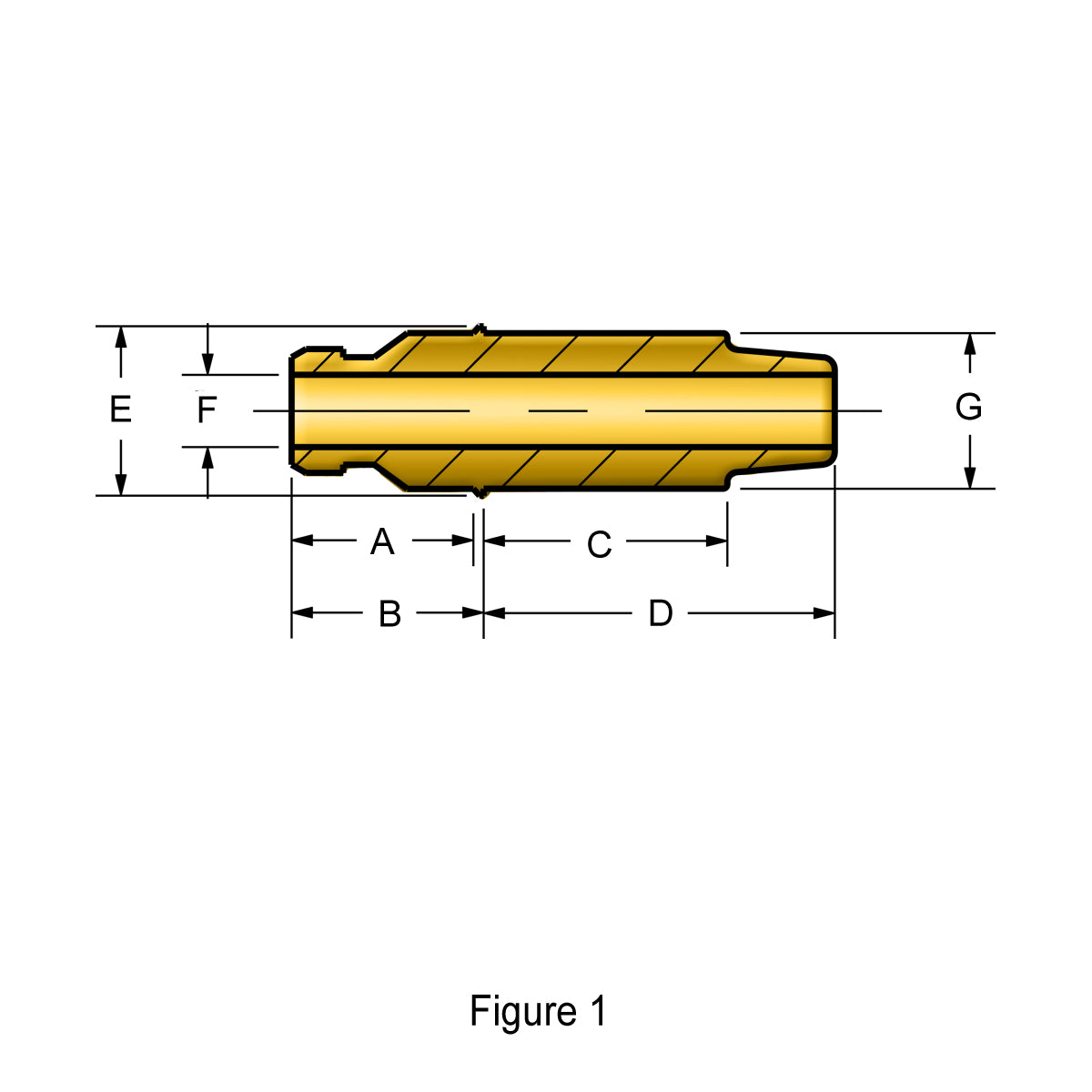

Reference | See Figure 1 |
Outside Dia.: (G) | 0.4550" / Std. |
A | 0.485" |
B | 0.525" |
C | 0.790" |
D | 1.110" |
E | 0.495" |
F | 0.2350" |
Unique Identifier No. | FR327789_01GAUSt |
