Cylinder Head Service Kit, 0.470" Lift, Can-Am®, Various 850-1000cc Twins*, 2013-2020

Cylinder Head Service Kit, 0.470" Lift, Can-Am®, Various 850-1000cc Twins*, 2013-2020

90-91400

$1,044.25 USD
$1,044.25 USD $1,044.25 USD
Sale Sold out

California Prop 65

*Applications OEM spec'd with 36.5mm Intake Valves and 31.0mm Exhaust Valves ONLY Including Maverick/ Outlander/ Renegade • 850/ 1000cc

KPMI® is proud to introduce full CYLINDER HEAD SERVICE KITS. These kits contain all items to completely refresh and upgrade cylinder heads for popular Dirt / MX and Side x Side models with KPMI’s top quality racing valvetrain components.

Features:

  • Save time money on your next cylinder head rebuild
  • One package, everything you need for factory recommended valvetrain service
  • Double your service life over OEM using KPMI® Valvetrain products
  • Kitted with value added savings

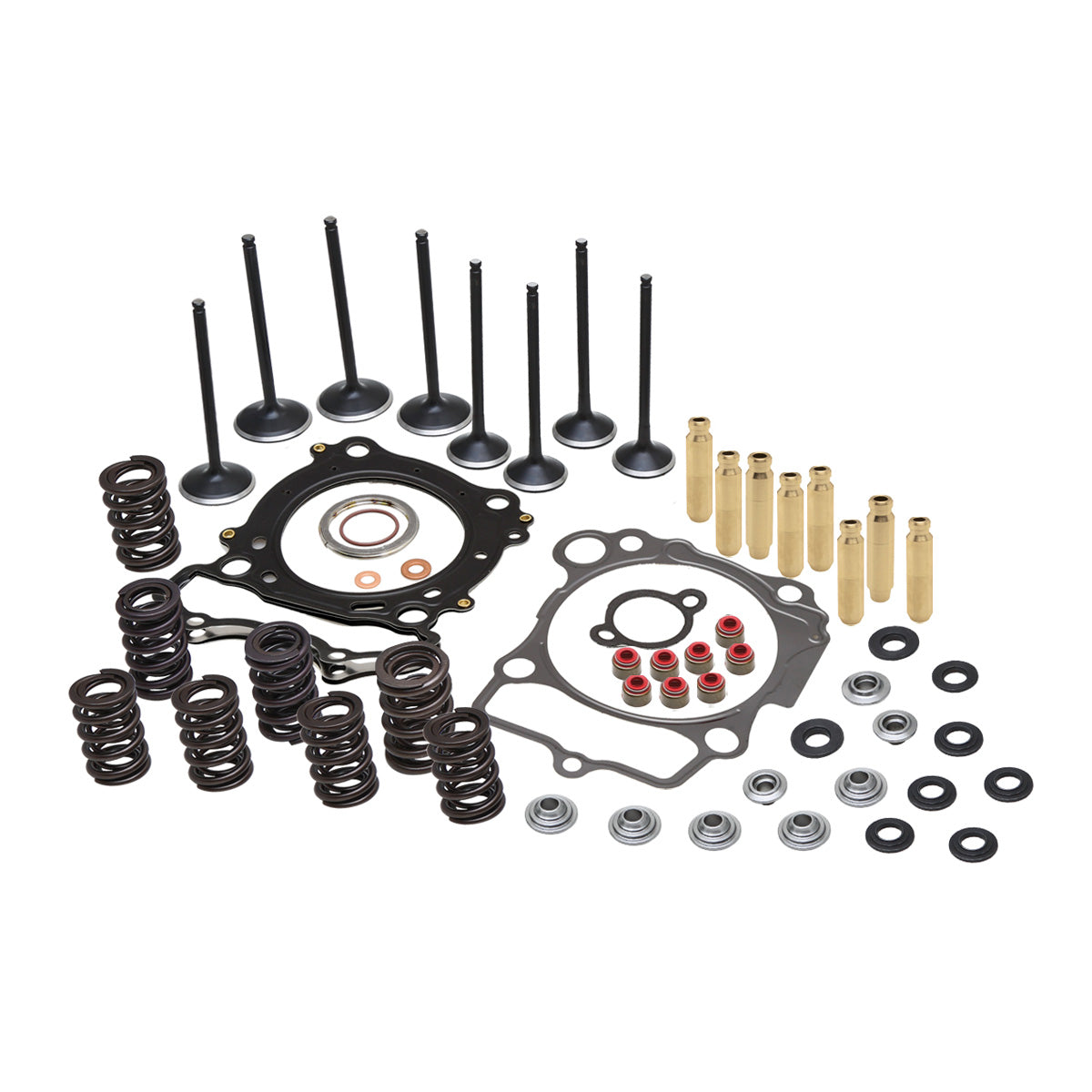

Kit Includes:

  • Dual Spring Titanium Retainer Spring Kit, Which Allows for 0.435" Valve Lift
  • Top End Gasket Kit by Cometic
  • KPMI® C630 Bronze Standard Valve Guides
  • KPMI® S.S. Black Diamond™ Valves, Stock Head Dia.

The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.

Installation Instructions Click Here
Type Intake/ Exhaust
Retainer Material Titanium
Valve Lift 0.470"
Installed Height 1.370"
Seat Pressure 57#
Open Pressure 177#
@ Lift 0.470"
Valve Type  Intake/ Exhaust
Valve Material Black Diamond™ Stainless
Coating Black Nitroneg
Intake Head Diameter 36.00mm / 1.437"
Intake Stem Diameter 5.5mm / 0.2160"
Intake Tulip 14º
Intake Overall Length 3.620"
Exhaust Head Diameter 31.00mm / 1.220"
Exhaust Stem Diameter 5.5mm / 0.2155"
Exhaust Tulip 25º
Exhaust Overall Length 3.515"
Remarks Standard
Guide Type Intake / Exhaust
Guide Material C630 Bronze

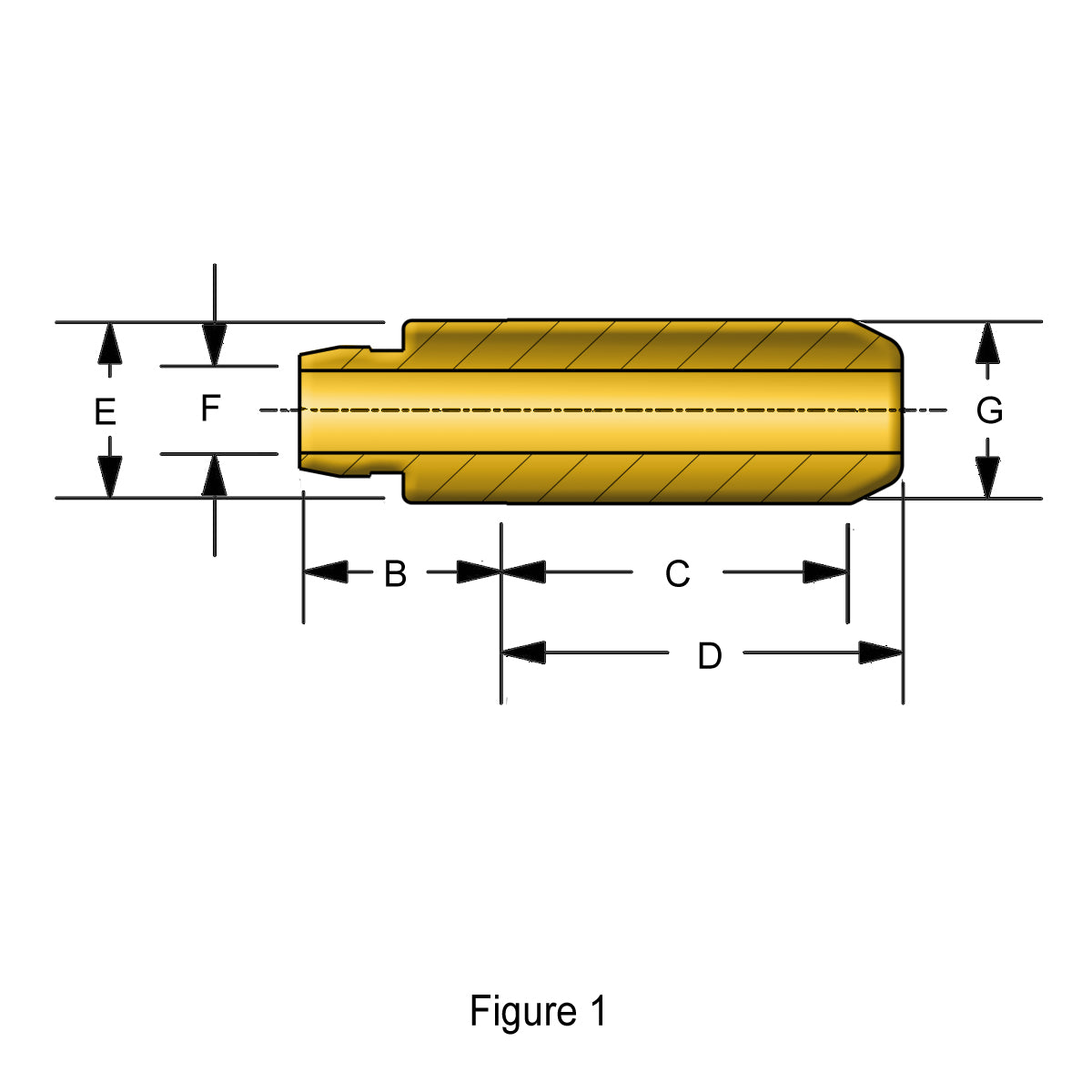

Intake Reference See Figure 1
Intake Outside Dia.: (G) 0.4361" / Std.
A
 ---
B
 0.515"
C
 0.745"
D
 0.935"
E
 0.433"
F
 0.2155"
Unique Identifier No. FR327789_01GAUSt
