Cylinder Head Service Kit, 0.465" Lift, Honda®, XR™ 650L, 1993-2024
Cylinder Head Service Kit, 0.465" Lift, Honda®, XR™ 650L, 1993-2024
SKU:30-33490
Regular price
$420.90 USD
Regular price
$420.90 USD
Sale price
$420.90 USD
Unit price
per
Couldn't load pickup availability
KPMI® is proud to introduce full CYLINDER HEAD SERVICE KITS. These kits contain all items to completely refresh and upgrade cylinder heads for popular Dirt / MX and Side x Side models with KPMI’s top quality racing valvetrain components.
Features:
- Save time money on your next cylinder head rebuild
- One package, everything you need for factory recommended valvetrain service
- Double your service life over OEM using KPMI® Valvetrain products
- Kitted with value added savings

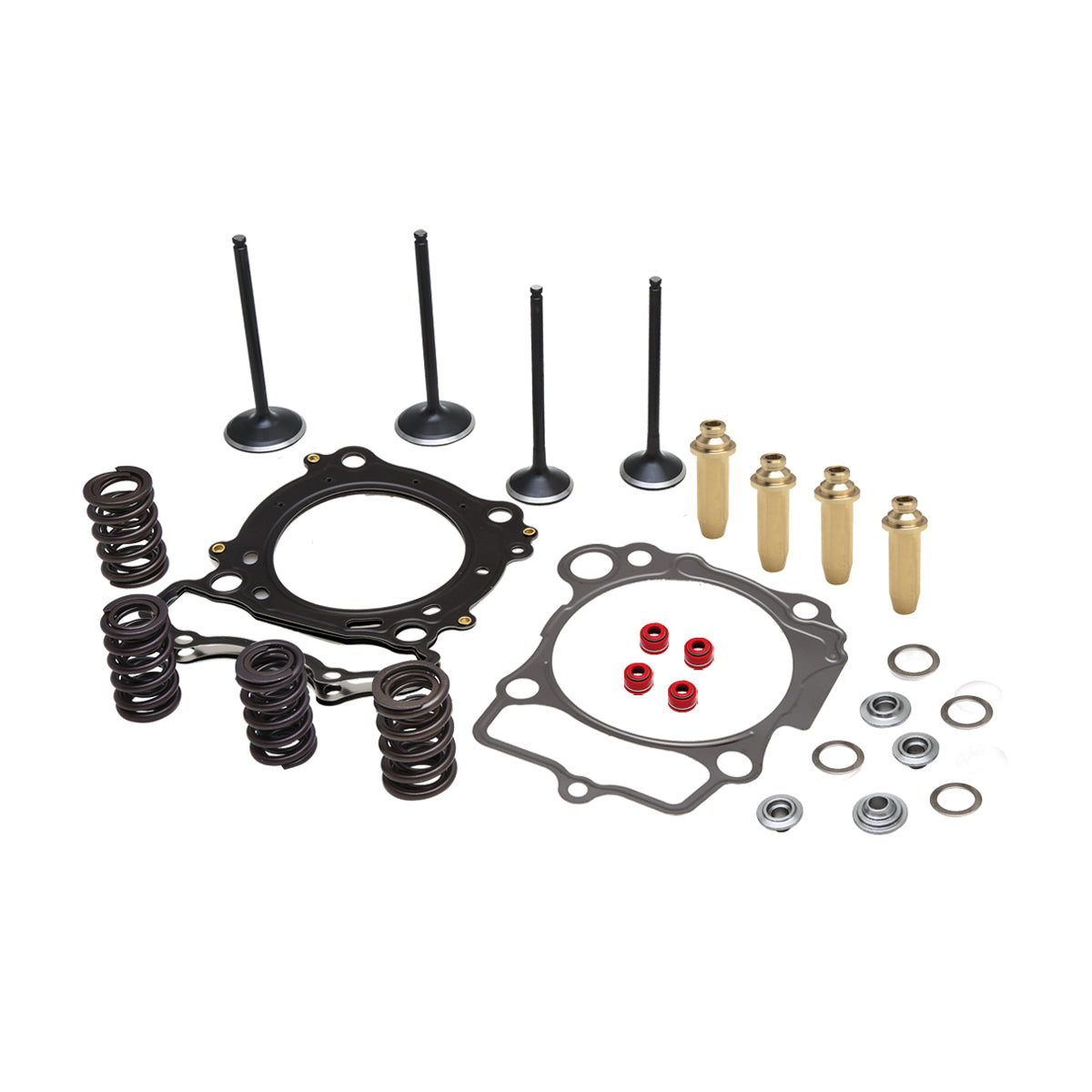

Kit Includes:
- Dual Spring Titanium Retainer Spring Kit, Which Allows for 0.350" Valve Lift
- Top End Gasket Kit by Cometic
- KPMI® C630 Bronze Standard Valve Guides
- KPMI® S.S. Black Diamond™ Valves, Stock Head Dia.
The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.
| Installation Instructions |
Click Here |
| Type | Intake/ Exhaust |
| Retainer Material | Titanium |
| Valve Lift | 0.465" |
| Installed Height | 1.210" |
| Seat Pressure | 70# |
| Open Pressure | 185# |
| @ Lift | 0.400" |
| Valve Type |
Intake/ Exhaust |
| Valve Material | Black Diamond™ Stainless |
| Coating | Black Nitroneg |
| Intake Head Diameter | 36.00mm/ 1.417" |
| Intake Stem Diameter | 6.6mm / 0.2590" |
| Intake Tulip | 23º |
| Intake Overall Length | 4.165" |
| Exhaust Head Diameter | 31.00mm/ 1.220" |
| Exhaust Stem Diameter | 6.6mm / 0.2585" |
| Exhaust Tulip | 29º |
| Exhaust Overall Length | 4.095" |
| Remarks | Standard |
| Guide Type | Intake/ Exhaust |
| Guide Material | C630 Bronze |

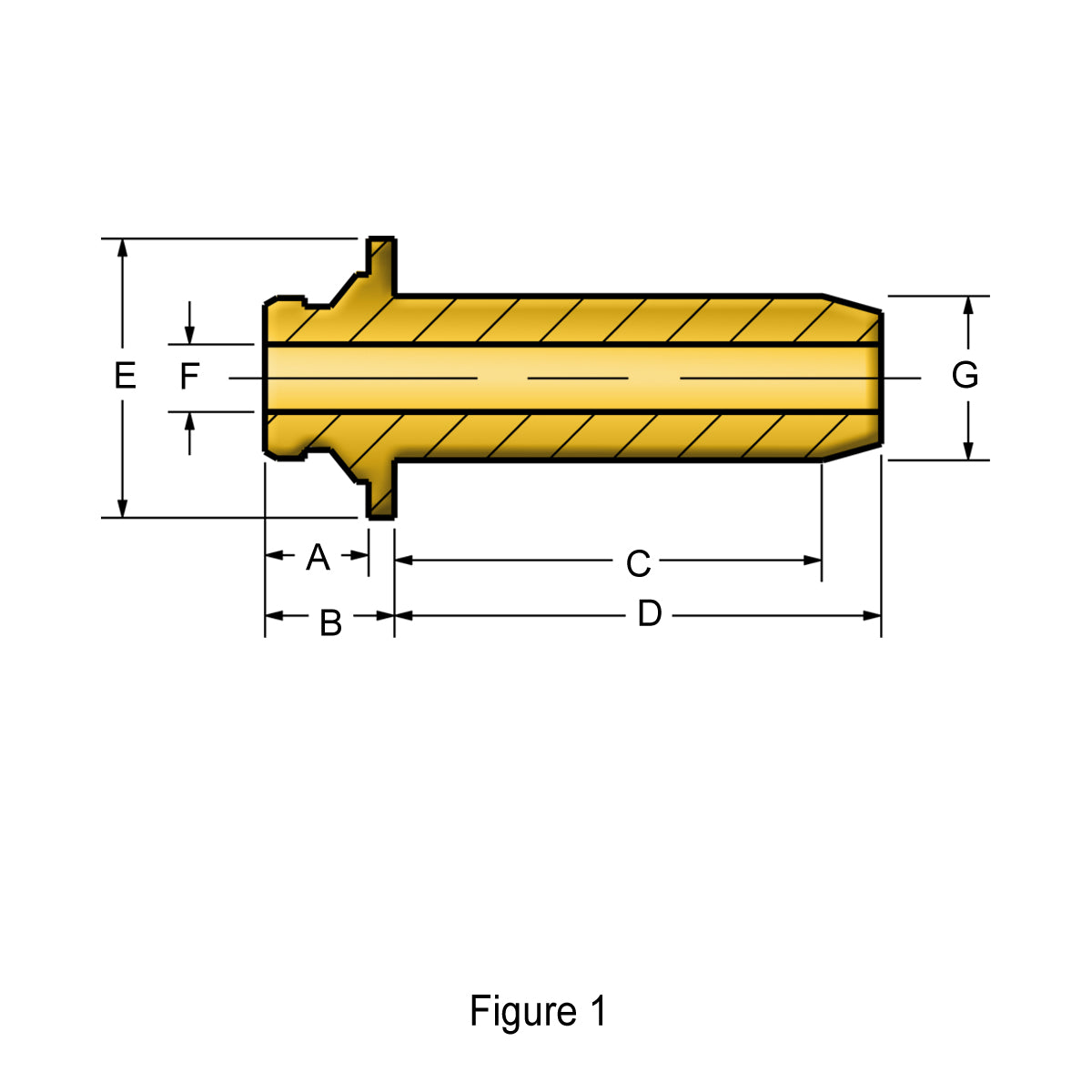

| Intake Reference | See Figure 1 |
| Outside Dia.: (G) | 0.4755"/ Std. |
| A | 0.300" |
| B | 0.375" |
| C | 1.240" |
| D | 1.410" |
| E | 0.808" |
| F | 0.2585" |
| Unique Identifier No. | FR327789_01GAUSt |
