Cylinder Head Service Kit, 0.445" Lift, Suzuki®, RM-Z250™, 2007-2009
Cylinder Head Service Kit, 0.445" Lift, Suzuki®, RM-Z250™, 2007-2009
SKU:60-61810
Regular price
$421.74 USD
Regular price
$421.74 USD
Sale price
$421.74 USD
Unit price
per
Couldn't load pickup availability
KPMI® is proud to introduce full CYLINDER HEAD SERVICE KITS. These kits contain all items to completely refresh and upgrade cylinder heads for popular Dirt / MX and Side x Side models with KPMI’s top quality racing valvetrain components.
Features:
- Save time money on your next cylinder head rebuild
- One package, everything you need for factory recommended valvetrain service
- Double your service life over OEM using KPMI® Valvetrain products
- Kitted with value added savings

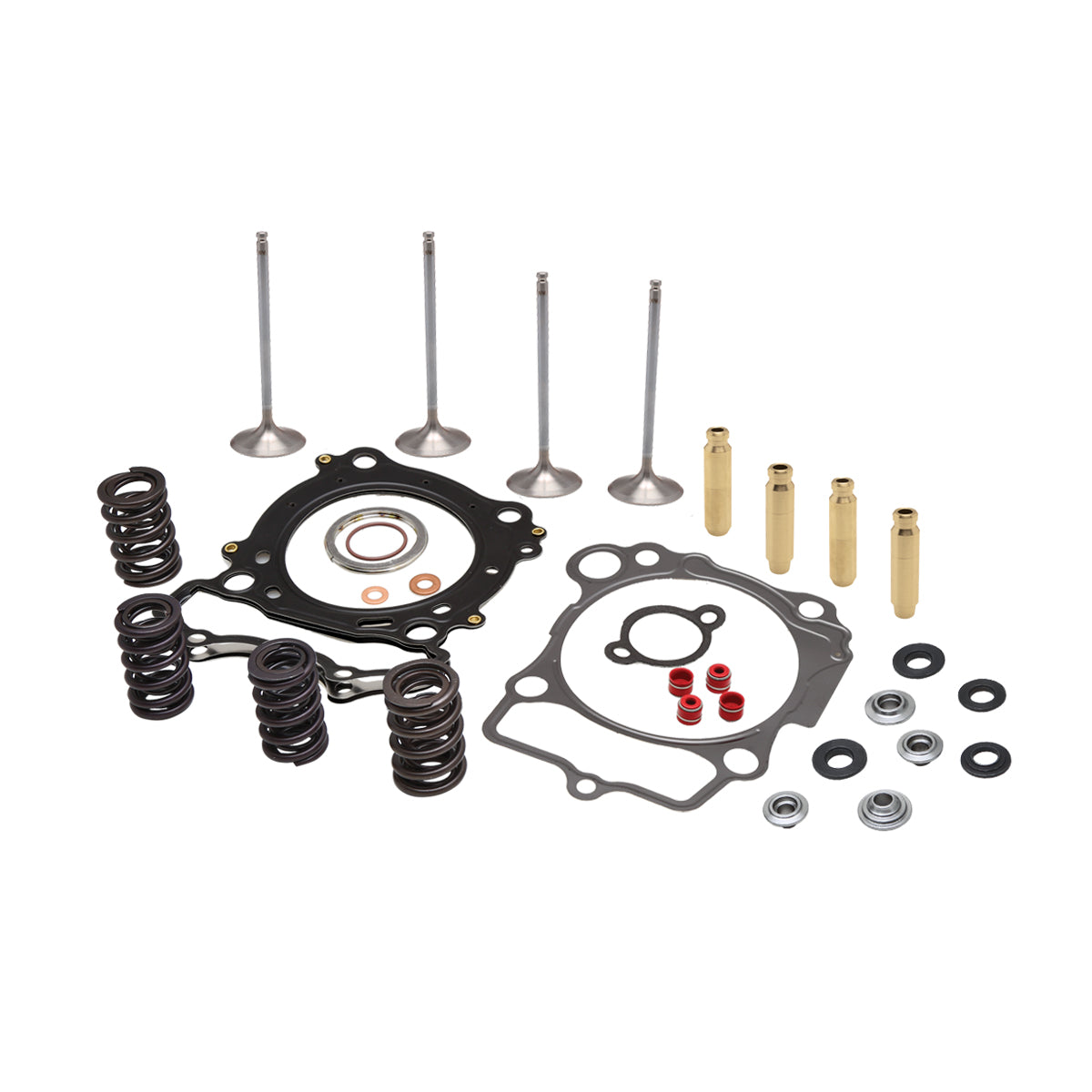

Kit Includes:
- Dual Spring Titanium Retainer Spring Kit, Which Allows for 0.350" Valve Lift
- Top End Gasket Kit by Cometic
- KPMI® C630 Bronze Standard Valve Guides
- KPMI® S.S. White Diamond® Valves, Stock Head Dia.
The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.
| Installation Instructions |
Click Here |
| Type | Intake/ Exhaust |
| Retainer Material | Titanium |
| Valve Lift | 0.445" |
| Installed Height | 1.300" |
| Seat Pressure | 51# |
| Open Pressure | 160# |
| Intake @ Lift | 0.445" |
| Valve Type |
Intake/ Exhaust |
| Valve Material | White Diamond® Stainless |
| Coating | Hard Chrome |
| Intake Head Diameter | 31.00mm/ 1.220" |
| Intake Stem Diameter | 4.5mm/ 0.1765" |
| Intake Tulip | 15º |
| Intake Overall Length | 3.175" |
| Exhaust Head Diameter | 25.00mm/ 0.985" |
| Exhaust Stem Diameter | 5.0mm/ 0.1953" |
| Exhaust Tulip | 25º |
| Exhaust Overall Length | 3.175" |
| Remarks | Standard |
| Guide Type | Intake/ Exhaust |
| Guide Material | C674 Bronze |
| Reference | See Figure 1 |
| Outside Dia.: (G) | 0.3778"/ Std. |
| A |
0.545" |
| B |
0.545" |
| C |
0.530" |
| D | 0.700" |
| E |
0.374" |
| F |
0.1765" |
| Unique Identifier No. | FR327789_01GAUSt |
