Cylinder Head Service Kit, 0.445" Lift, Kawasaki®, KX250F™, 2007-2008
Cylinder Head Service Kit, 0.445" Lift, Kawasaki®, KX250F™, 2007-2008
SKU:40-41510
Regular price
$475.17 USD
Regular price
$475.17 USD
Sale price
$475.17 USD
Unit price
per
Couldn't load pickup availability
KPMI® is proud to introduce full CYLINDER HEAD SERVICE KITS. These kits contain all items to completely refresh and upgrade cylinder heads for popular Dirt / MX and Side x Side models with KPMI’s top quality racing valvetrain components.
Features:
- Save time money on your next cylinder head rebuild
- One package, everything you need for factory recommended valvetrain service
- Double your service life over OEM using KPMI® Valvetrain products
- Kitted with value added savings
Kit Includes:
- Dual Spring Titanium Retainer Spring Kit, Which Allows for 0.445" Valve Lift
- Top End Gasket Kit by Cometic
- KPMI® C674 Bronze Standard Valve Guides
- KPMI® S.S. White Diamond® Valves, Stock Head Dia.
The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.
| Installation Instructions |
Click Here |
| Type | Intake/ Exhaust |
| Retainer Material | Titanium |
| Valve Lift | 0.445" |
| Installed Height | 1.320" |
| Seat Pressure | 46# |
| Open Pressure | 155# |
| Intake @ Lift | 0.445" |
| Valve Type |
Intake/ Exhaust |
| Valve Material | White Diamond® Stainless |
| Coating | Hard Chrome |
| Intake Head Diameter | 31.00mm/ 1.220" |
| Intake Stem Diameter | 4.5mm/ 0.1765" |
| Intake Tulip | 20º |
| Intake Overall Length | 3.120" |
| Exhaust Head Diameter | 31.00mm/ 1.220" |
| Exhaust Stem Diameter | 4.5mm/ 0.1756" |
| Exhaust Tulip | 25º |
| Exhaust Overall Length | 3.125" |
| Remarks | Standard |
| Guide Type | Intake/ Exhaust |
| Guide Material | C674 Bronze |

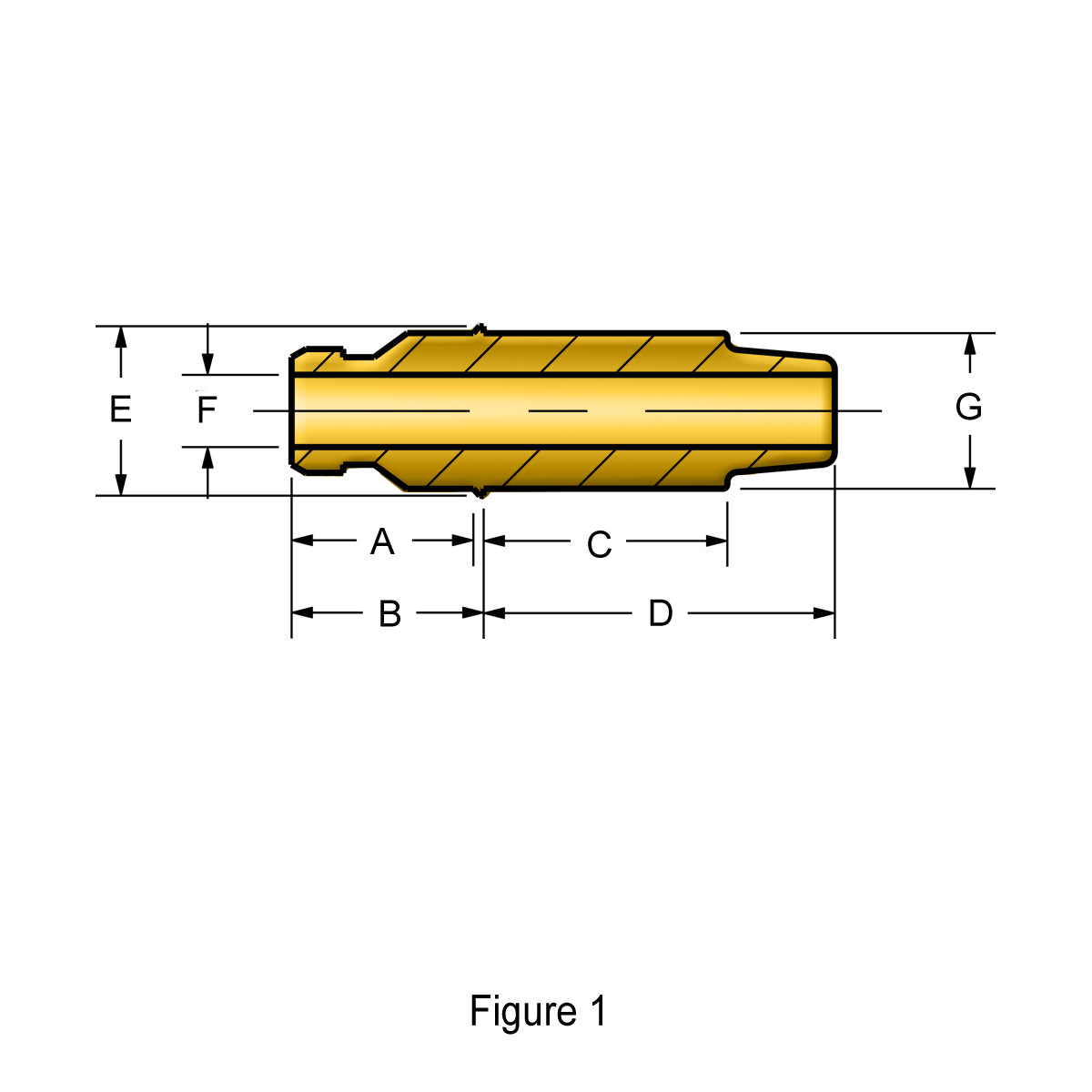

| Reference | See Figure 1 |
| Intake Outside Dia.: (G) | 0.3765" / Std. |
| Intake (A) | 0.465" |
| Intake (B) | 0.465" |
| Intake (C) | 0.532" |
| Intake (D) | 0.870" |
| Intake (E) | 0.374" |
| Intake (F) | 0.1765" |
| Exhaust Outside Dia.: (G) | 0.3765" / Std. |
| Exhaust (A) | 0.440" |
| Exhaust (B) | 0.465" |
| Exhaust (C) | 0.590" |
| Exhaust (D) | 0.850" |
| Exhaust (E) | 0.410" |
| Exhaust (F) | 0.1765" |
| Note | Guide, #40-40520 - Recommended for 2007-2016 model only. Guide, #40-40120 - Recommended for Intake 2004-2006 model only and Exhaust 2004-2016 all model. |
| Unique Identifier No. | FR327789_01GAUSt |
