Cylinder Head Service Kit, 0.440" Lift, Polaris®, Predator™ Outlaw 500, 2003-2007
Cylinder Head Service Kit, 0.440" Lift, Polaris®, Predator™ Outlaw 500, 2003-2007
SKU:82-83200
Regular price
$446.74 USD
Regular price
$446.74 USD
Sale price
$446.74 USD
Unit price
per
Couldn't load pickup availability
KPMI® is proud to introduce full CYLINDER HEAD SERVICE KITS. These kits contain all items to completely refresh and upgrade cylinder heads for popular Dirt / MX and Side x Side models with KPMI’s top quality racing valvetrain components.
Features:
- Save time money on your next cylinder head rebuild
- One package, everything you need for factory recommended valvetrain service
- Double your service life over OEM using KPMI® Valvetrain products
- Kitted with value added savings
Kit Includes:
- Dual Spring Titanium Retainer Spring Kit, Which Allows for 0.440" Valve Lift
- Top End Gasket Kit by Cometic
- KPMI® C674 Bronze Standard Valve Guides
- KPMI® S.S. Black Diamond™ Valves, Stock Head Dia.
The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.
| Installation Instructions |
Click Here |
| Type | Intake/ Exhaust |
| Retainer Material | Titanium |
| Valve Lift | 0.440" |
| Installed Height | 1.375" |
| Seat Pressure | 66# |
| Open Pressure | 199# |
| @ Lift | 0.440" |
| Valve Type |
Intake/ Exhaust |
| Valve Material | Black Diamond™ Stainless |
| Coating | Black Nitroneg |
| Intake Head Diameter | 37.00mm / 1.457" |
| Intake Stem Diameter | 6.0mm/ 0.2345" |
| Intake Tulip | 20º |
| Intake Overall Length | 4.030" |
| Exhaust Head Diameter | 32.00mm / 1.260" |
| Exhaust Stem Diameter | 6.0mm/ 0.2345" |
| Exhaust Tulip | 22º |
| Exhaust Overall Length | 4.055" |
| Remarks | Standard |
| Guide Type | Intake / Exhaust |
| Guide Material | C674 Bronze |

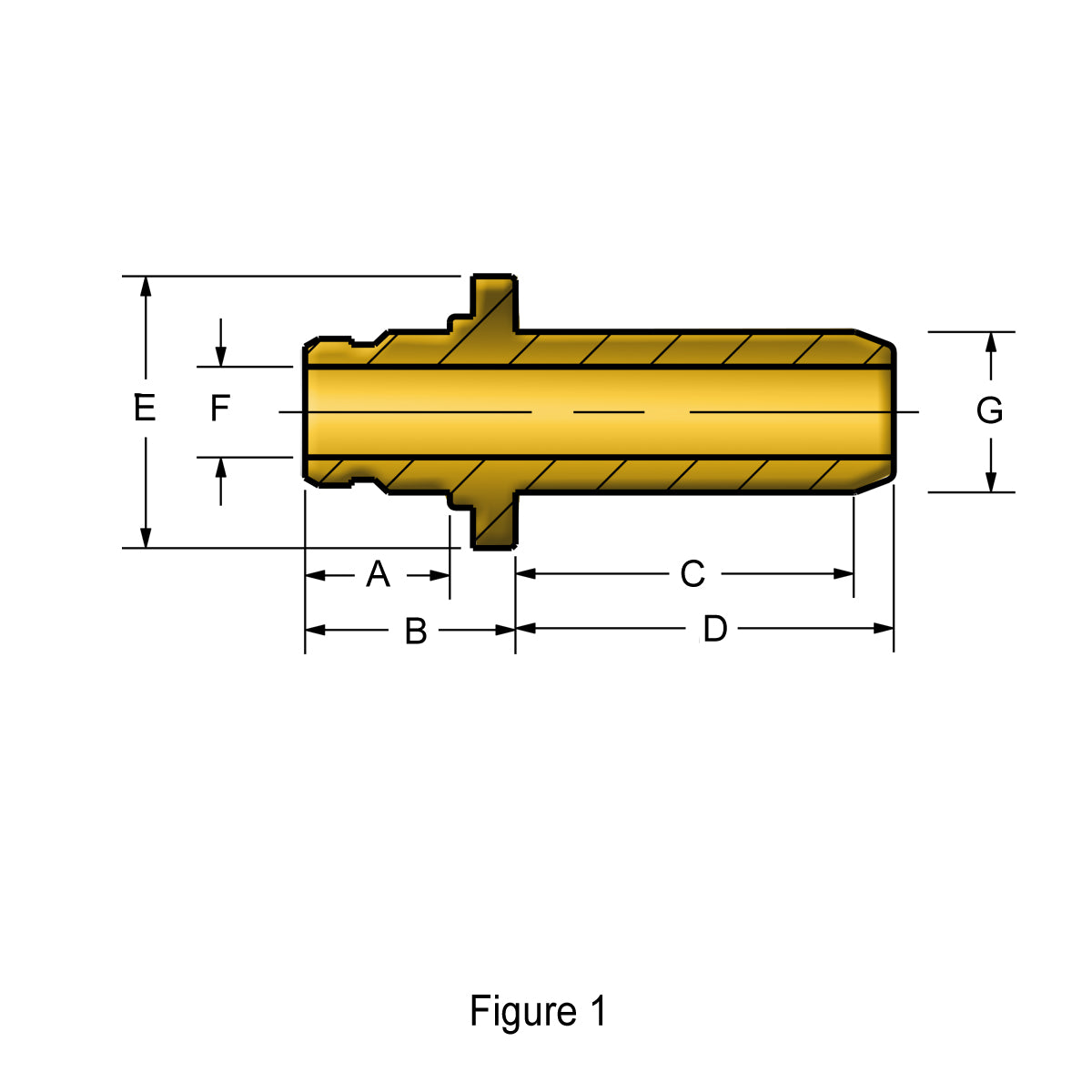

| Reference | See Figure 1 |
| Outside Dia.: (G) | 0.4160" / Std. |
| A | 0.375" |
| B | 0.545" |
| C | 0.880" |
| D | 0.980" |
| E | 0.704" |
| F | 0.2345" |
| Unique Identifier No. | FR327789_01GAUSt |
