Cylinder Head Service Kit, 0.435" Lift, Polaris®, Various 1000's 2015-2023
Cylinder Head Service Kit, 0.435" Lift, Polaris®, Various 1000's 2015-2023
SKU:82-83150
Regular price
$668.26 USD
Regular price
$668.26 USD
Sale price
$668.26 USD
Unit price
per
Couldn't load pickup availability
Excluding Turbo's
Polaris® RZR™ 1000 (&S/XP/Trail S) 2015-2023
Polaris® RZR™ RS1 2018-2022
Polaris® General 1000 (&XP) 2016-2023
KPMI® is proud to introduce full CYLINDER HEAD SERVICE KITS. These kits contain all items to completely refresh and upgrade cylinder heads for popular Dirt / MX and Side x Side models with KPMI’s top quality racing valvetrain components.
Features:
- Save time money on your next cylinder head rebuild
- One package, everything you need for factory recommended valvetrain service
- Double your service life over OEM using KPMI® Valvetrain products
- Kitted with value added savings
Kit Includes:
- Beehive Spring H.T. Steel Retainer Spring Kit, Which Allows for 0.435" Valve Lift
- Top End Gasket Kit by Cometic
- KPMI® C674 Bronze Standard Valve Guides
- KPMI® S.S. Black Diamond™ Valves, Stock Head Dia.
The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.
| Installation Instructions |
Click Here |
| Type | Intake/ Exhaust |
| Retainer Material | Titanium |
| Valve Lift | 0.435" |
| Installed Height | 1.360" |
| Seat Pressure | 80# |
| Open Pressure | 205# |
| @ Lift | 0.435" |
| Valve Type |
Intake/ Exhaust |
| Valve Material | Black Diamond™ Stainless |
| Coating | Black Nitroneg |
| Intake Head Diameter | 37.72mm / 1.485" |
| Intake Stem Diameter | 5.5mm/ 0.2160" |
| Intake Tulip | 17º |
| Intake Overall Length | 3.775" |
| Exhaust Head Diameter | 29.21mm / 1.150" |
| Exhaust Stem Diameter | 5.5mm/ 0.2155" |
| Exhaust Tulip | 25º |
| Exhaust Overall Length | 3.805" |
| Remarks | Standard |
| Guide Type | Intake / Exhaust |
| Guide Material | C674 Bronze |

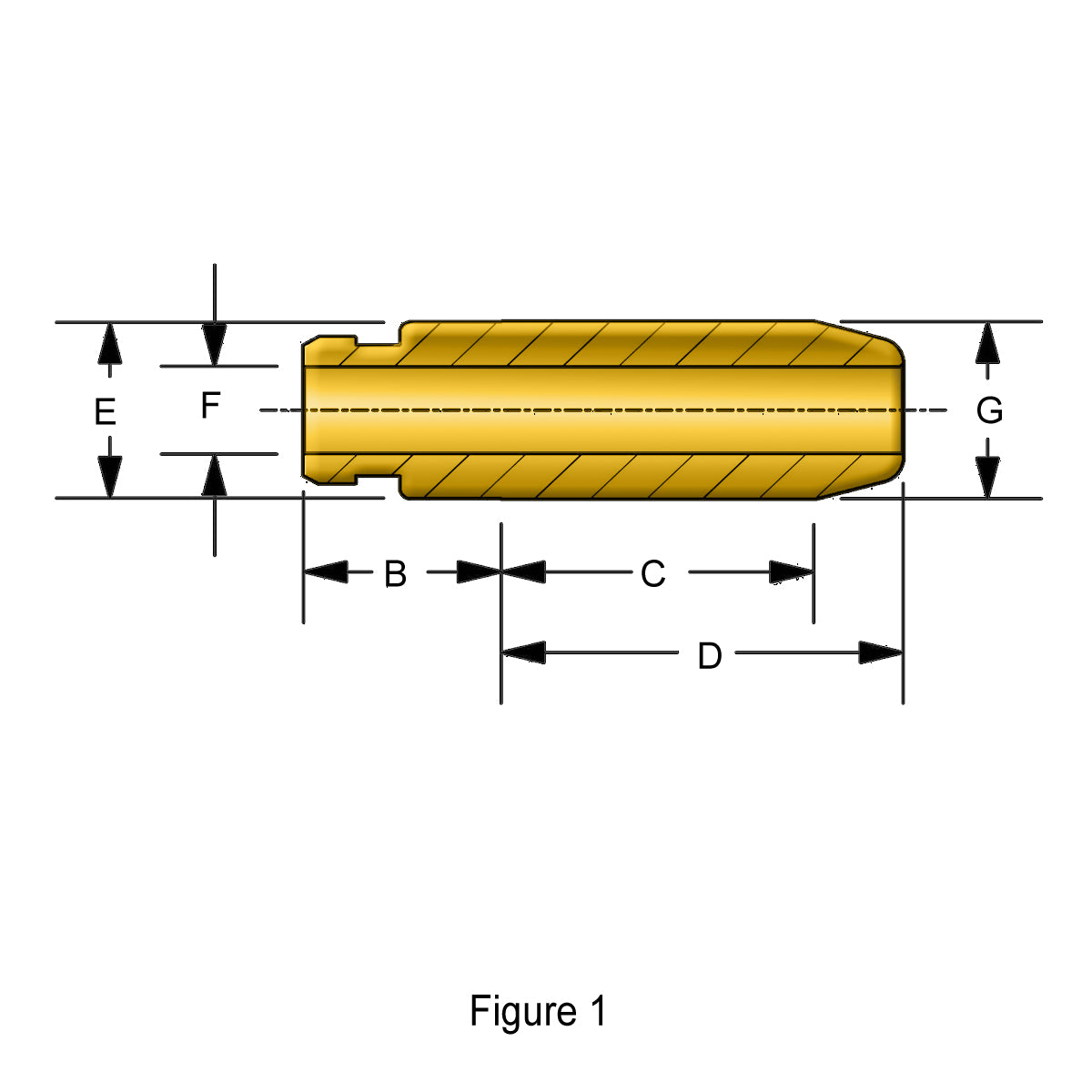

| Reference | See Figure 1 |
| Intake Outside Dia.: (G) | 0.4353" / Std. |
| Intake (A) | --- |
| Intake (B) |
0.455" |
| Intake (C) |
0.755" |
| Intake (D) |
0.940" |
| Intake (E) |
0.433" |
| Intake (F) |
0.2160" |
| Exhaust Outside Dia.: (G) | 0.4353" / Std. |
| Exhaust (A) | --- |
| Exhaust (B) | 0.455" |
| Exhaust (C) | 1.090" |
| Exhaust (D) | 1.190" |
| Exhaust (E) | 0.433 |
| Exhaust (F) | 0.2155 |
| Unique Identifier No. | FR327789_01GAUSt |
