Cylinder Head Service Kit, 0.435" Lift, KTM®, 400cc-560cc, 2000-2009 (95mm Bore)
Cylinder Head Service Kit, 0.435" Lift, KTM®, 400cc-560cc, 2000-2009 (95mm Bore)
SKU:96-96570
Regular price
$463.58 USD
Regular price
Sale price
$463.58 USD
Unit price
per
Couldn't load pickup availability
KTM® All RFS ATV Engines 450cc-525cc 2008-2009
KTM® All RFS Dirt Bike Engines 400cc-560cc 2000-2009
KPMI® is proud to introduce full CYLINDER HEAD SERVICE KITS. These kits contain all items to completely refresh and upgrade cylinder heads for popular Dirt / MX and Side x Side models with KPMI’s top quality racing valvetrain components.
Features:
- Save time money on your next cylinder head rebuild
- One package, everything you need for factory recommended valvetrain service
- Double your service life over OEM using KPMI® Valvetrain products
- Kitted with value added savings
Kit Includes:
- Dual Spring Titanium Retainer Spring Kit, Which Allows for 0.435" Valve Lift
- Top End Gasket Kit by Cometic
- KPMI® C630 Bronze Standard Valve Guides
- KPMI® S.S. Black Diamond™ Valves, Stock Head Dia.
The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.
| Model Year Coverage | Click Here |
| Installation Instructions |
Click Here |
| Type | Intake/ Exhaust |
| Retainer Material | Titanium |
| Valve Lift | 0.435" |
| Installed Height | 1.175" |
| Seat Pressure | 75# |
| Open Pressure | 214# |
| @ Lift | 0.435" |
| Valve Type |
Intake/ Exhaust |
| Valve Material | Black Diamond™ Stainless |
| Coating | Black Nitroneg |
| Intake Head Diameter | 35.00mm / 1.378" |
| Intake Stem Diameter | 6.0mm / 0.2350" |
| Intake Tulip | 20º |
| Intake Overall Length | 3.815" |
| Exhaust Head Diameter | 30.00mm / 1.181" |
| Exhaust Stem Diameter | 5.9mm / 0.2342" |
| Exhaust Tulip | 24º |
| Exhaust Overall Length | 3.815" |
| Remarks | Standard |
| Guide Type | Intake / Exhaust |
| Guide Material | C630 Bronze |

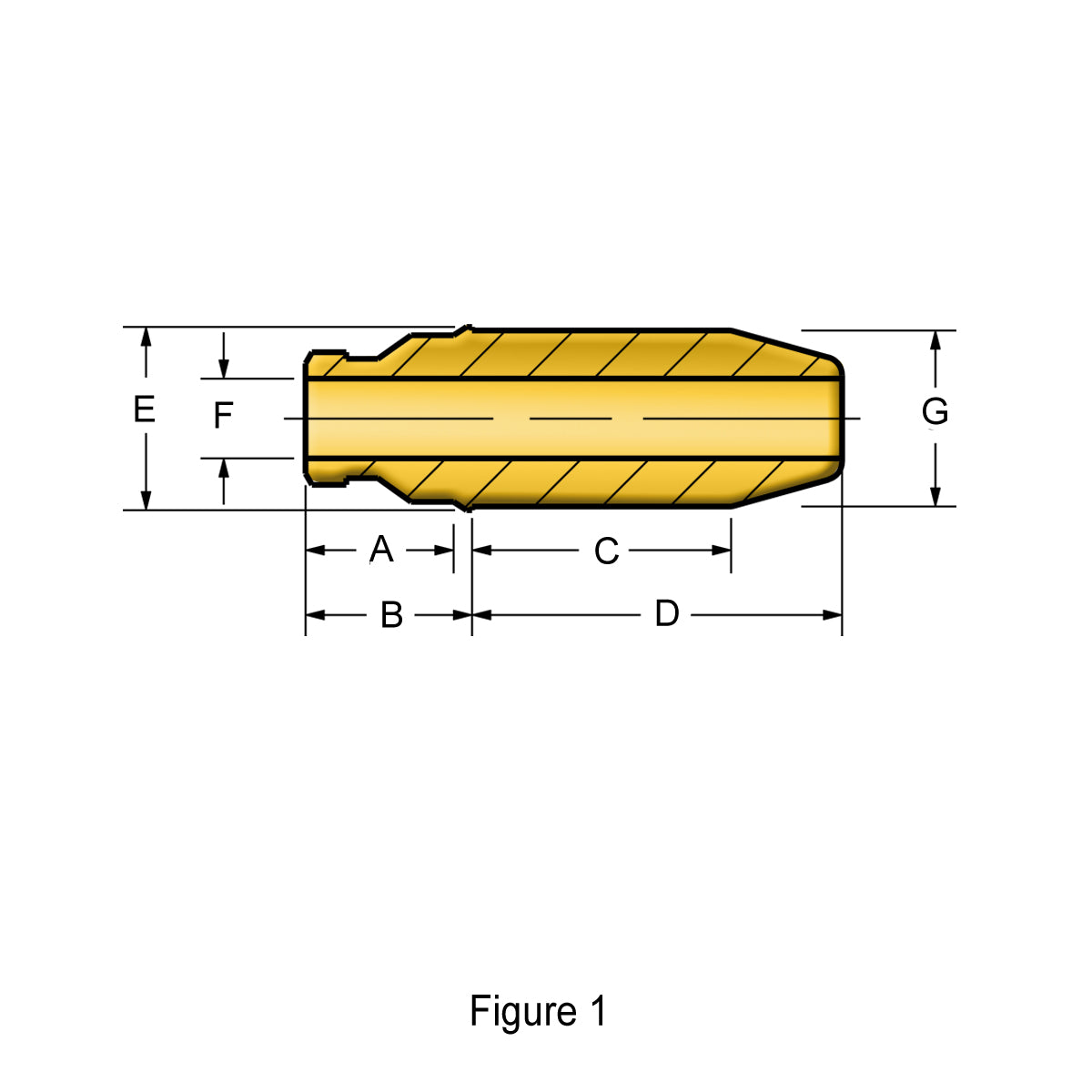

| Intake Reference | See Figure 1 |
| Intake Outside Dia.: (G) | 0.4745" / Std. |
| Intake (A) | 0.410" |
| Intake (B) | 0.450" |
| Intake (C) | 0.555" |
| Intake (D) | 0.945" |
| Intake (E) | 0.252" |
| Intake (F) | 0.2360" |
| Exhaust Outside Dia.: (G) | 0.4745" / Std. |
| Exhaust (A) | 0.410" |
| Exhaust (B) | 0.450" |
| Exhaust (C) | 0.740" |
| Exhaust (D) | 1.100" |
| Exhaust (E) | 0.525" | tr>
| Exhaust (F) | 0.2360" |
| Unique Identifier No. | FR327789_01GAUSt |
