Cylinder Head Service Kit, 0.415" Lift, Kawasaki®, KX450F™, 2016
Cylinder Head Service Kit, 0.415" Lift, Kawasaki®, KX450F™, 2016
SKU:40-41480
Regular price
$418.65 USD
Regular price
$418.65 USD
Sale price
$418.65 USD
Unit price
per
KPMI® is proud to introduce full CYLINDER HEAD SERVICE KITS. These kits contain all items to completely refresh and upgrade cylinder heads for popular Dirt / MX and Side x Side models with KPMI’s top quality racing valvetrain components.
Features:
- Save time money on your next cylinder head rebuild
- One package, everything you need for factory recommended valvetrain service
- Double your service life over OEM using KPMI® Valvetrain products
- Kitted with value added savings
Kit Includes:
- Dual Spring Titanium Retainer Spring Kit, Which Allows for 0.415" Valve Lift
- Top End Gasket Kit by Cometic
- KPMI® C630 Bronze Standard Valve Guides
- KPMI® S.S. Black Diamond™ Valves, Stock Head Dia.
The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.
Installation Instructions |
Click Here |
Type | Intake/ Exhaust |
Retainer Material | Titanium |
Intake Valve Lift | 0.415" |
Intake Installed Height | 1.290" |
Intake Seat Pressure | 64# |
Intake Open Pressure | 169# |
Intake @ Lift | 0.415" |
Exhaust Valve Lift | .415" |
Exhaust Installed Height | 1.240" |
Exhaust Seat Pressure | 65# |
Exhaust Open Pressure | 170# |
Exhaust @ Lift | .415" |
Valve Type |
Intake/ Exhaust |
Valve Material | Black Diamond™ Stainless |
Coating | Black Nitroneg |
Intake Head Diameter | 35.99mm / 1.417" |
Intake Stem Diameter | 5.5mm/ 0.2155" |
Intake Tulip | 20º |
Intake Overall Length | 3.080" |
Exhaust Head Diameter | 31.00mm / 1.221" |
Exhaust Stem Diameter | 5.5mm/ 0.2150" |
Exhaust Tulip | 20º |
Exhaust Overall Length | 3.030" |
Remarks | Standard |
Guide Type | Intake / Exhaust |
Guide Material | C630 Bronze |

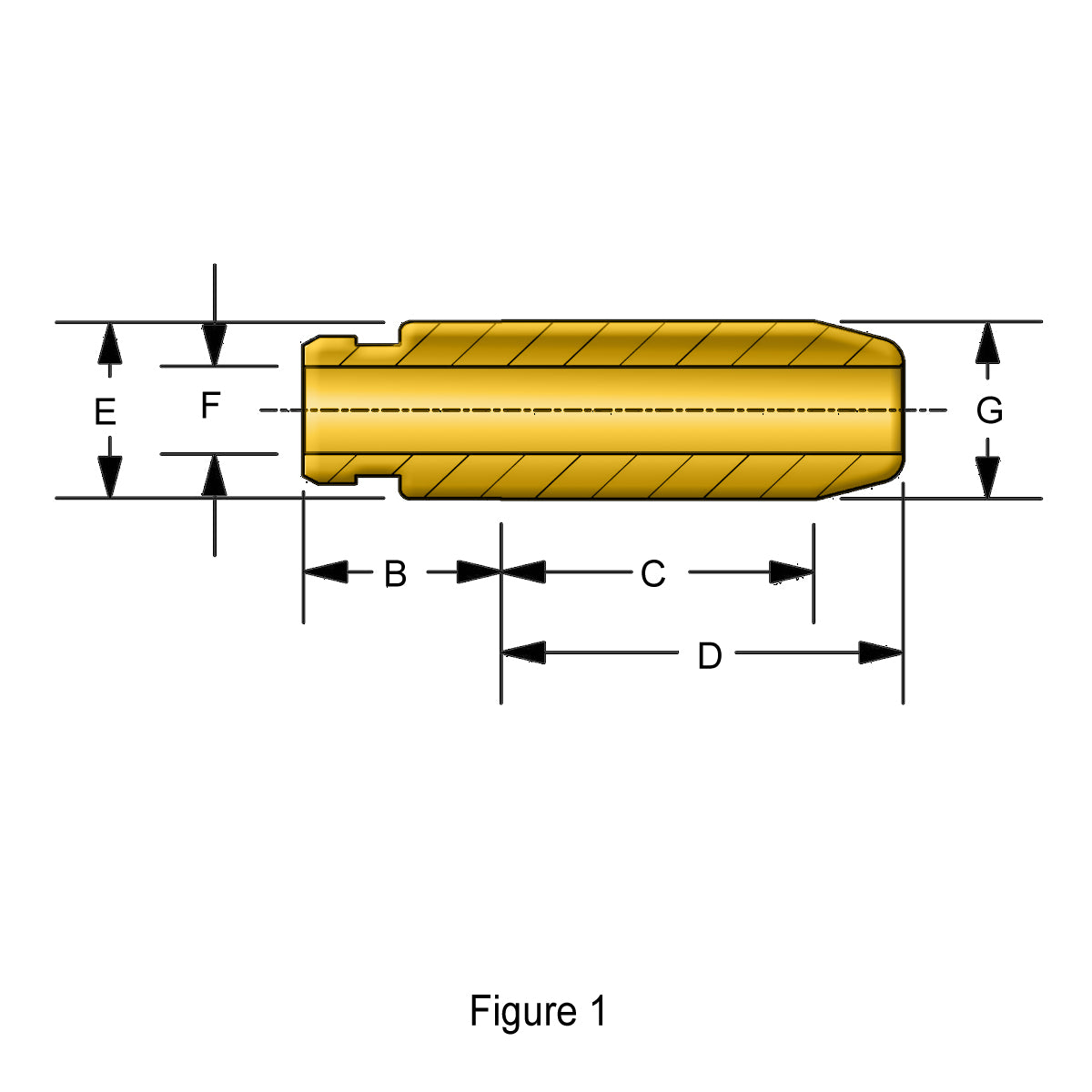

Intake Reference | See Figure 1 |
Outside Dia.: (G) | 0.4365" / Std. |
A | --- |
B | 0.380" |
C | 0.525" |
D | 0.760" |
E | 0.434" |
F | 0.2150" |
Unique Identifier No. | FR327789_01GAUSt |
