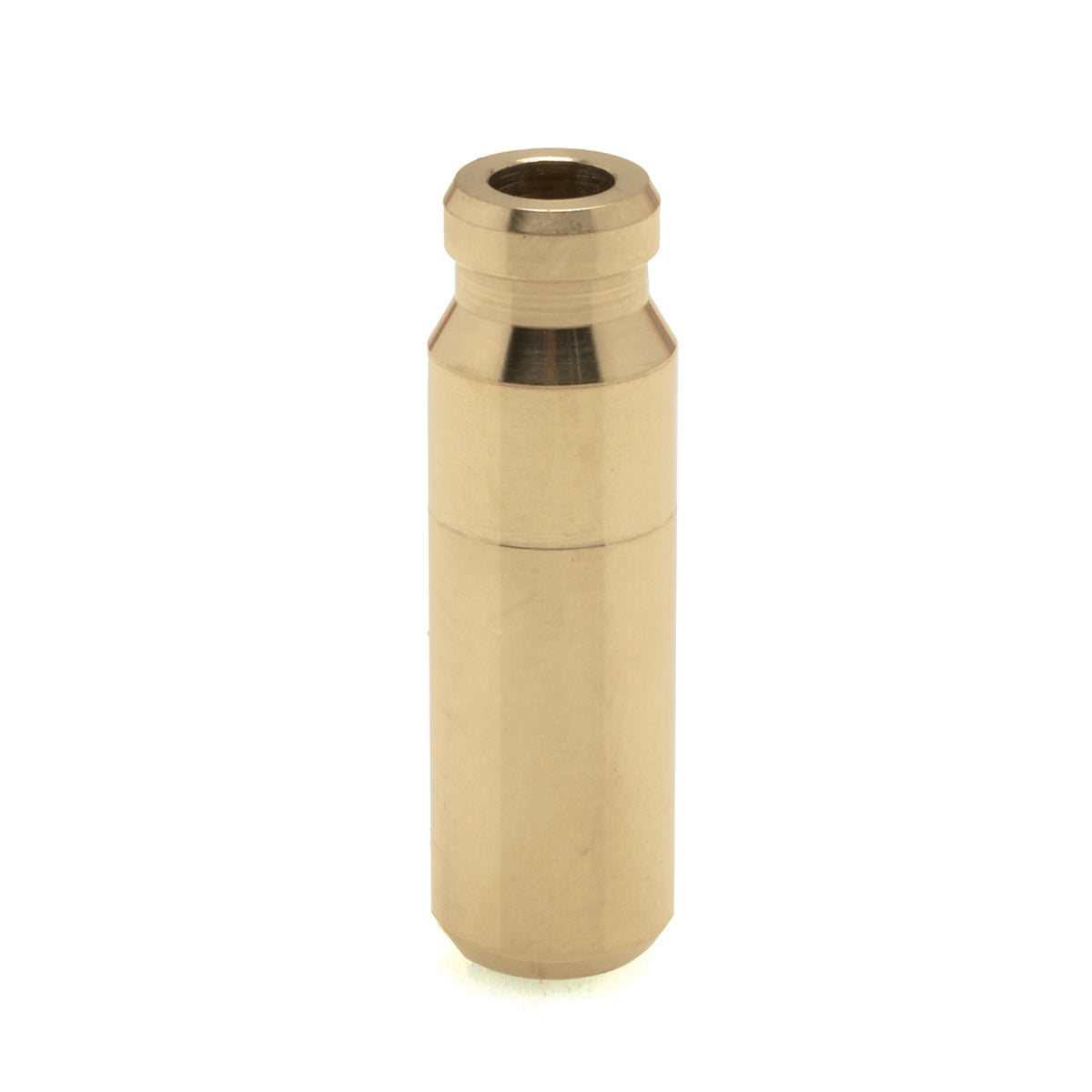

Guide, C630, Intake/ Exhaust, Various 350cc Applications
Guide, C630, Intake/ Exhaust, Various 350cc Applications
SKU:96-96620
Couldn't load pickup availability
GASGAS® EX™ 300F/350F 2021-2022
HUSQVARNA® FC™ 350 2016-2022
HUSQVARNA® FX™ 350 2017-2022
KTM® 350cc SX-F™ & XC-F™ 2016-2022
We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
Click Here to Download KPMI® Guide Sizing Tool Flyer
Click Here to Download KPMI® Seal Catalog
| Quantity | Pkg. of 1 |
| Type | Intake/ Exhaust |

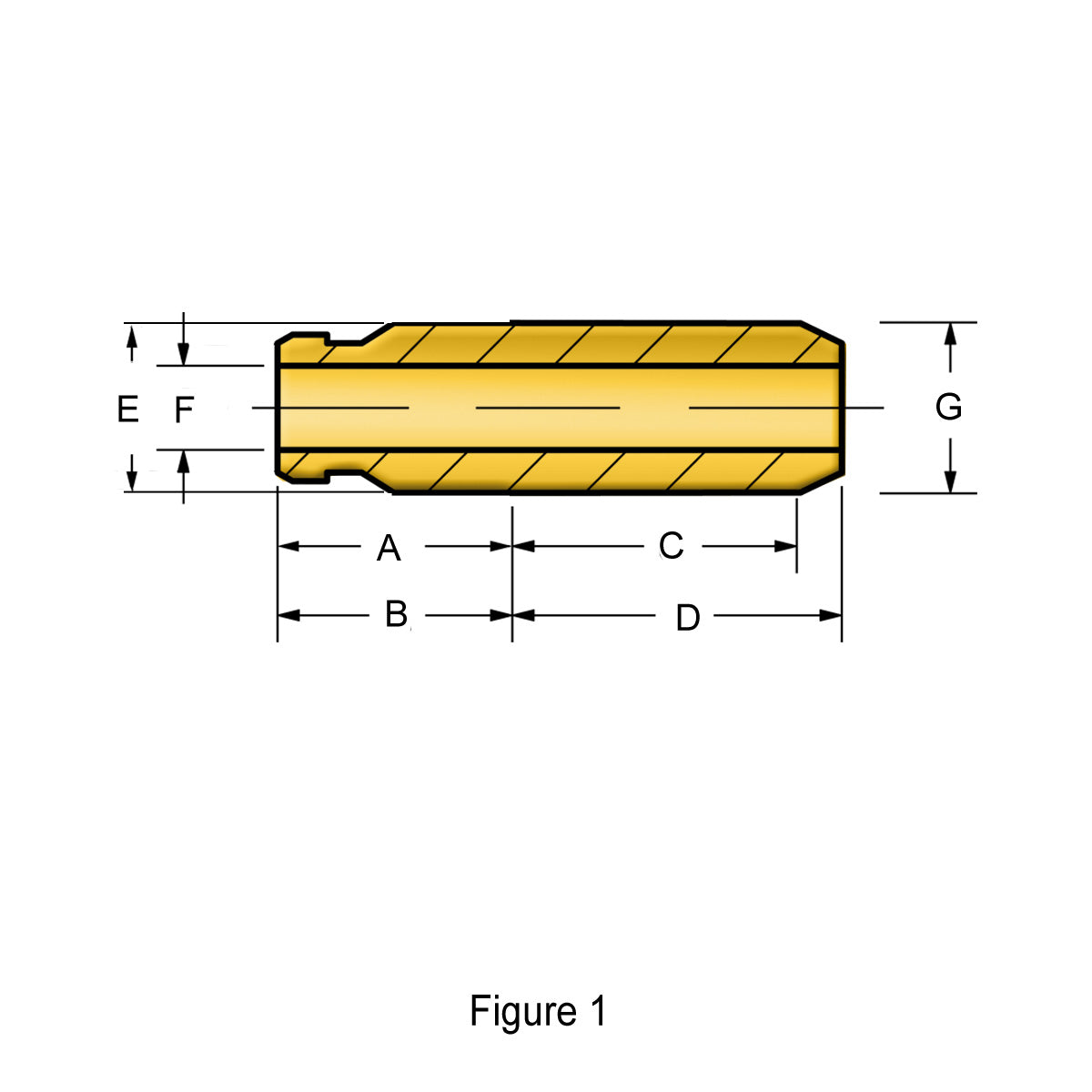

| Outside Dia. (G) | 0.4352" (Std.)/ 0.4362" (+0.001")/ 0.4372" (+0.002")/ 0.4452" (+0.010") |
| A | 0.465" |
| B | 0.465" |
| C | 0.835" |
| D | 1.035" |
| E | 0.433" |
| F | 0.2154" |
| Unique Identifier No. | FR327789_01GAUS |
