Guide, C630, Cast Iron, Exhaust, Various HD® Applications

Guide, C630, Cast Iron, Exhaust, Various HD® Applications

SKU:20-2030

Regular price $30.72 USD
Regular price $30.72 USD Sale price $30.72 USD
Sale Sold out
Material
Outside Dia.: (G)

California Prop 65

Harley-Davidson® Panhead 1948-1965
Harley-Davidson® Shovelhead 74" 1966-1977

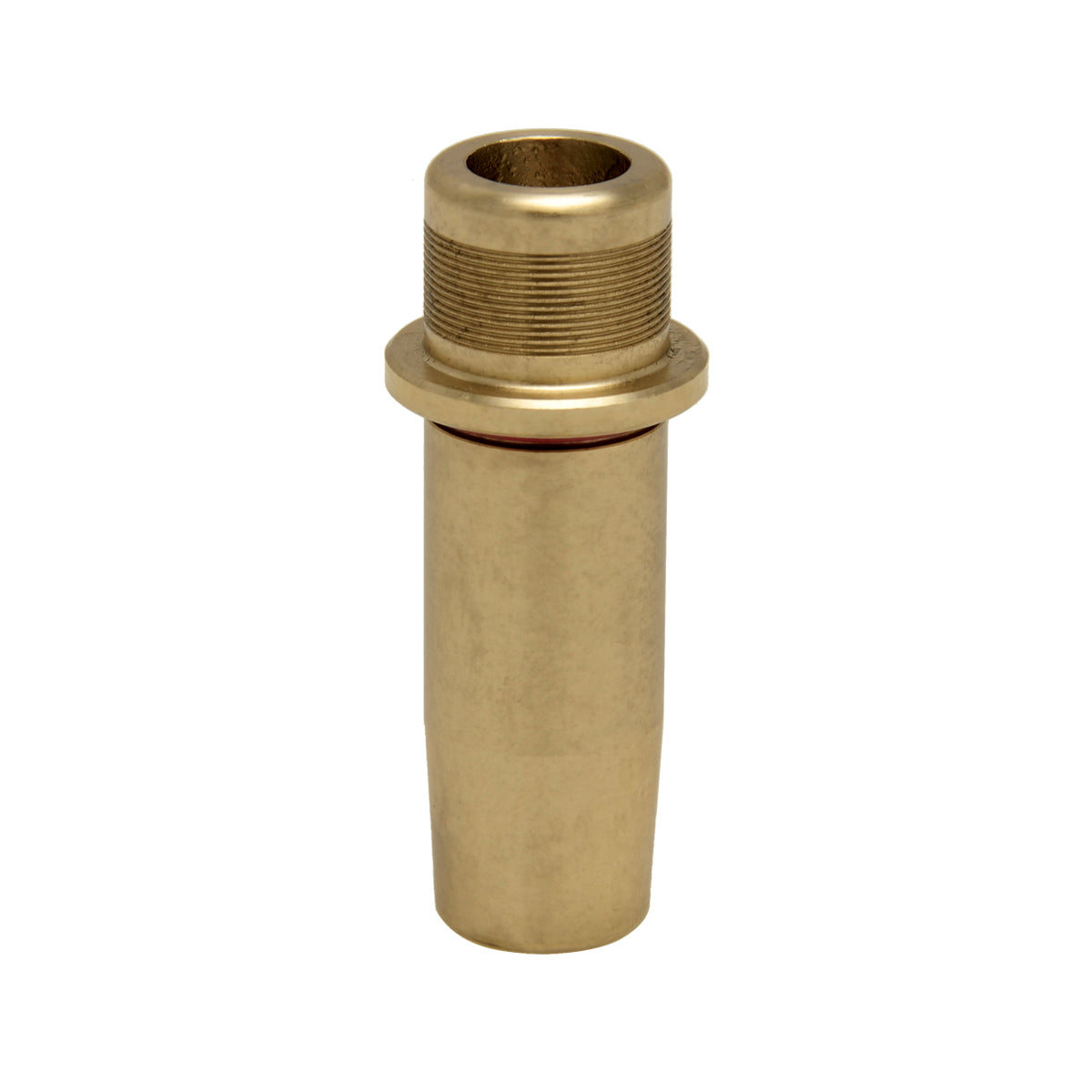

C630 Bronze: We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.

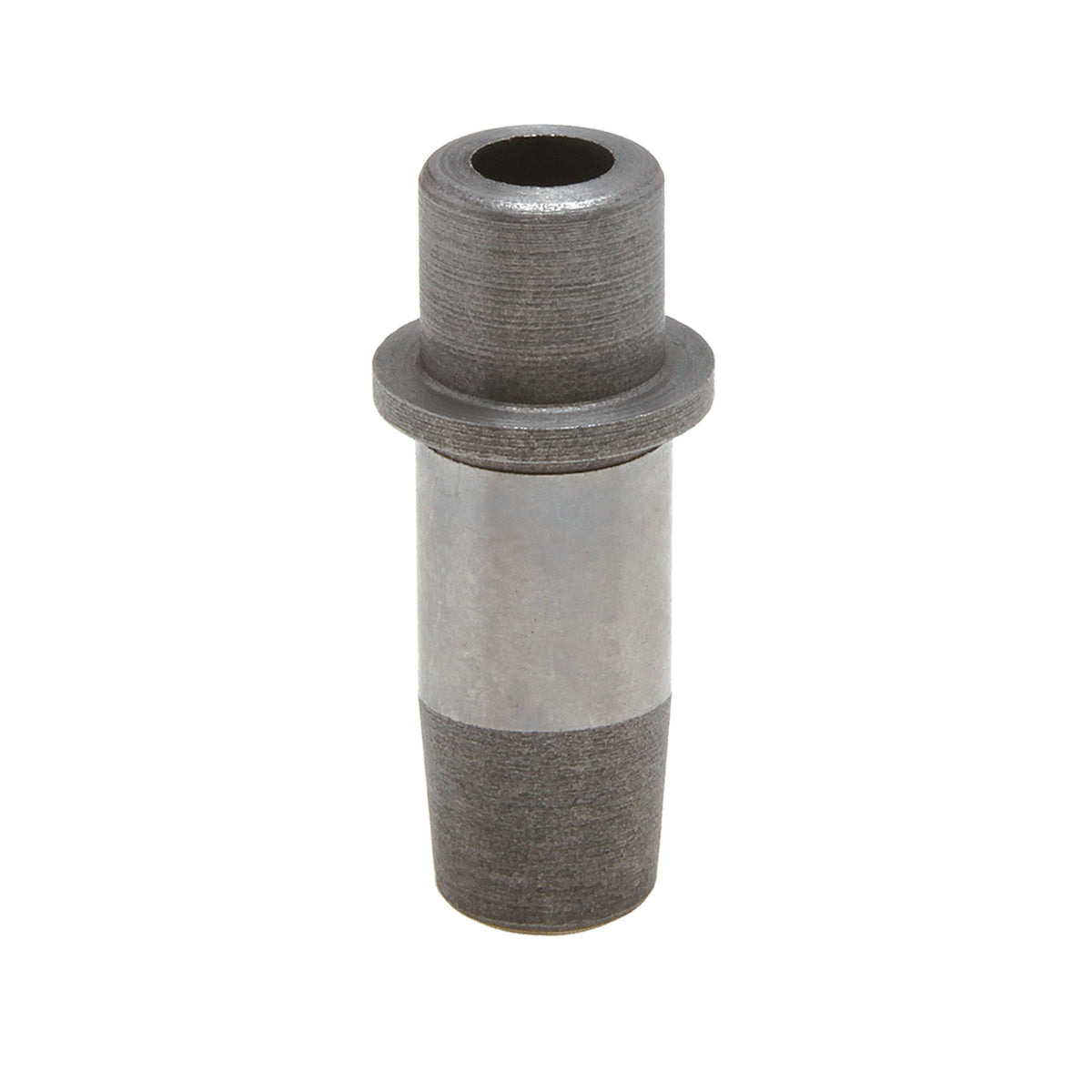

Cast Iron: After chemically separating several samples of cast iron material , analysis and evaluating the test data, we decided to have our own specification of cast iron made exclusively , us. We specify elements such as carbon, silicon, manganese, nickel, chromium, copper and sulfur to produce a highly pearlitic structure with dense fine grains , excellent wear resistance.

Click Here to Download KPMI® Guide Sizing Tool Flyer

Click Here to Download KPMI® Seal Catalog

Quantity Pkg. of 1
Type Exhaust
Outside Dia, (G) 0.5650" (Std.)/ 0.5660"(+0.001")/ 0.5670" (+0.002")/ 0.5680" (+0.003")/ 0.5690" (+0.004")/ 0.5710" (+0.006")/ 0.5730" (+0.008")/ 0.5750" (+0.010")/ 0.5900" (+0.025")
A 0.450"
B 0.540"
C 0.855"
D 1.315"
E 0.745"
F 0.3745"
Unique Identifier No. FR327789_01GAUS
