Guide, C630, Cast Iron, Exhaust, Various HD® Applications

Guide, C630, Cast Iron, Exhaust, Various HD® Applications


Regular price $26.43 USD
Regular price $26.43 USD Sale price $26.43 USD
Sale Sold out
Outside Dia.: (G)

California Prop 65

Harley-Davidson® Sportster 883cc / 1200cc 2004-2021
Harley-Davidson® Twin Cam 88" - 103" 2005-2017
Harley-Davidson® Buell XB9-XB12 2003-2010

C630 Bronze: We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.

Cast Iron: After chemically separating several samples of cast iron material , analysis and evaluating the test data, we decided to have our own specification of cast iron made exclusively , us. We specify elements such as carbon, silicon, manganese, nickel, chromium, copper and sulfur to produce a highly pearlitic structure with dense fine grains , excellent wear resistance.

Click Here to Download KPMI® Guide Sizing Tool Flyer

Click Here to Download KPMI® Seal Catalog

Quantity Pkg. of 1
Type Intake

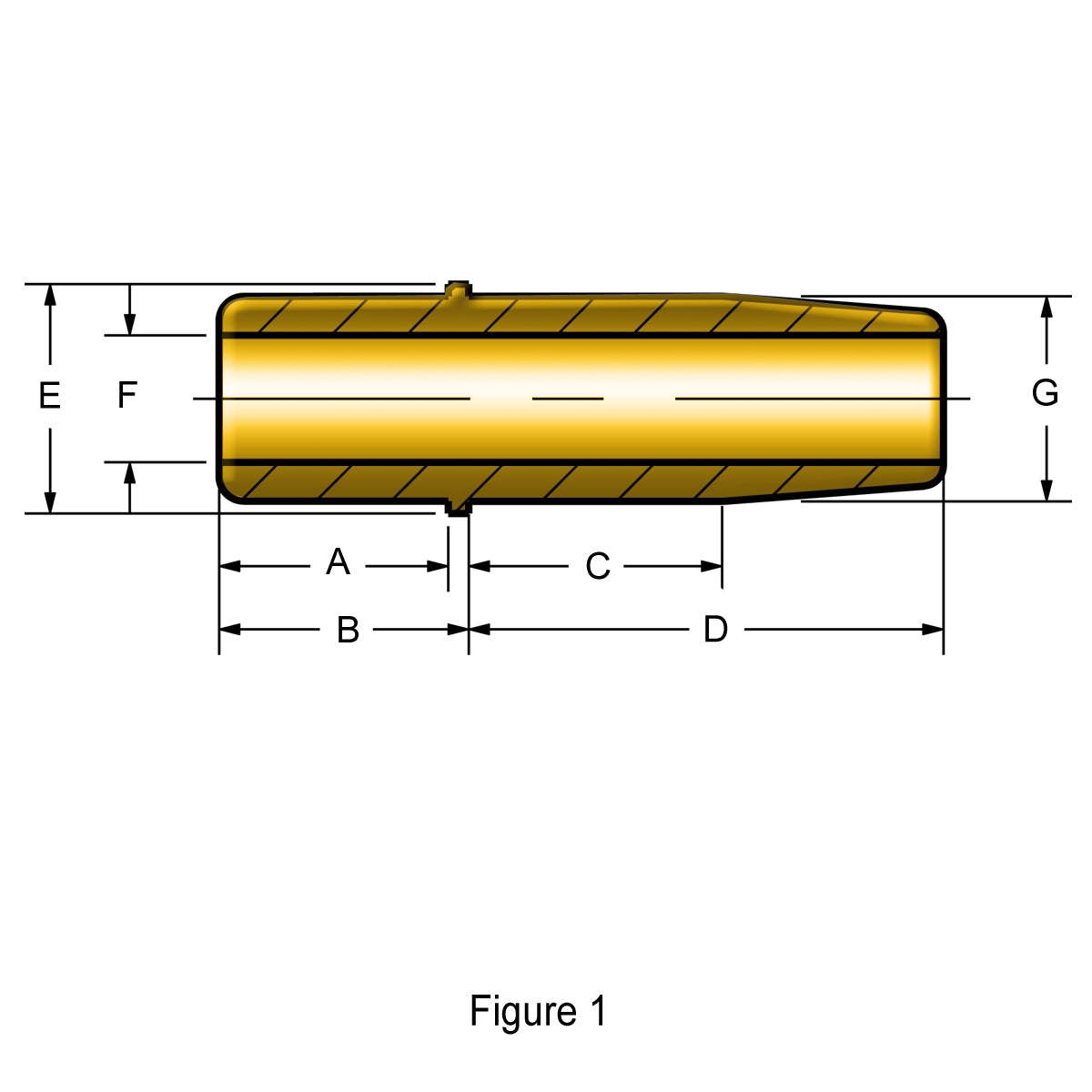

Outside Dia, (G) 0.5620"(Std.)/ 0.5630"(+0.001")/ 0.5640" (+0.002")0.5720" (+0.010")
A 0.650"
B 0.770"
C 1.030"
D 1.280"
E 0.615"
F 0.2750"
Unique Identifier No. FR327789_01GAUS
