Bushing, Wrist Pin, Various BSA® Applications
Bushing, Wrist Pin, Various BSA® Applications
SKU:10-10350
Regular price
$16.50 USD
Regular price
$16.50 USD
Sale price
$16.50 USD
Unit price
per
Couldn't load pickup availability
BSA® A10 1950-1962
BSA® A50 1966-1970
BSA® A65 1971-1972

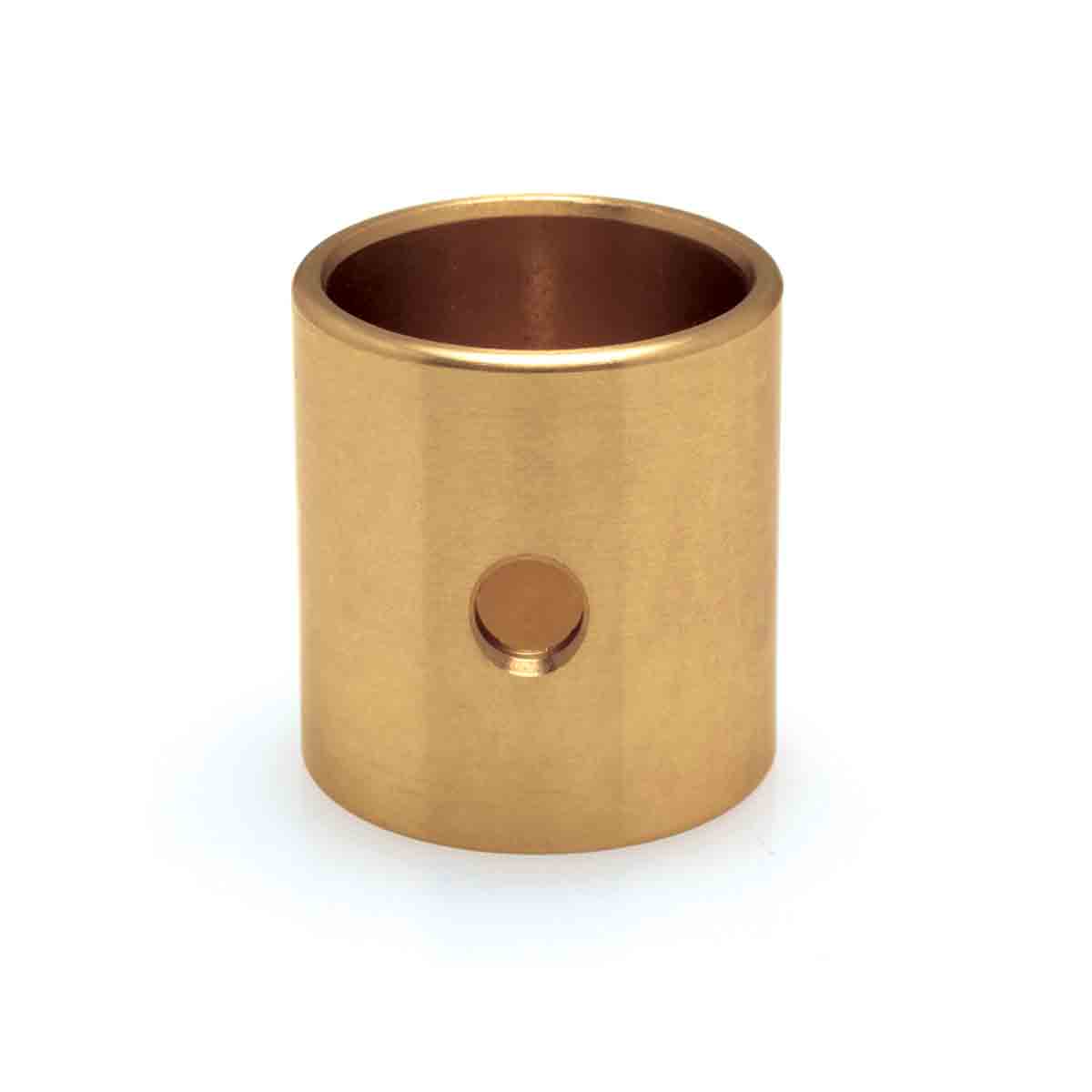

KPMI® Engine Builder series wrist pin bushings are made from SAE 660 bearing bronze to exact tolerances. These bushings will meet or exceed fitment and wear ability of all other "replacement style" bushings available.
| Material | SAE 660 Bearing Bronze |

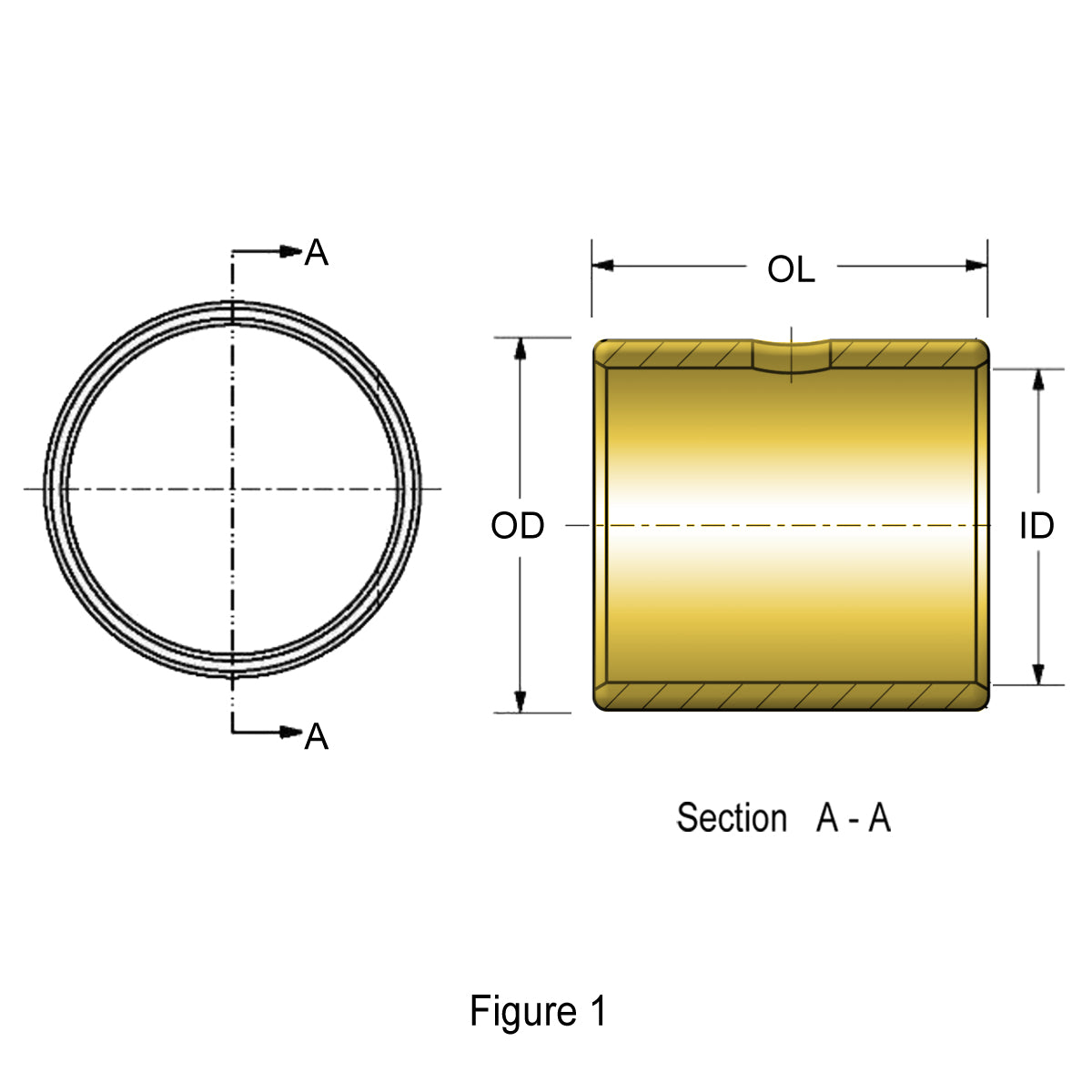

| Reference | See Figure 1 |
| Quantity | Pkg. of 1 |
| Outside Diameter | 0.8775" (Std.) or 0.8795" (+0.002") |
| Inside Diameter | 0.7480" |
| Overall Length | 0.950" |
| Note | Designed and manufactured by Kibblewhite® to original OEM specifications with Kibblewhite® quality and precision. |
| Unique Identifier No. | FR327789_01GAUS |
