Bushing, Wrist Pin, Std., BMW®, /5™/6™/7™/R80™/R90™/R100™, 1970-1995
Bushing, Wrist Pin, Std., BMW®, /5™/6™/7™/R80™/R90™/R100™, 1970-1995
Part No. 90-9030
Couldn't load pickup availability
Vehicle fitment (1)
Listed by the vehicle categories this part appears in. Please confirm fitment for your vehicle before ordering.

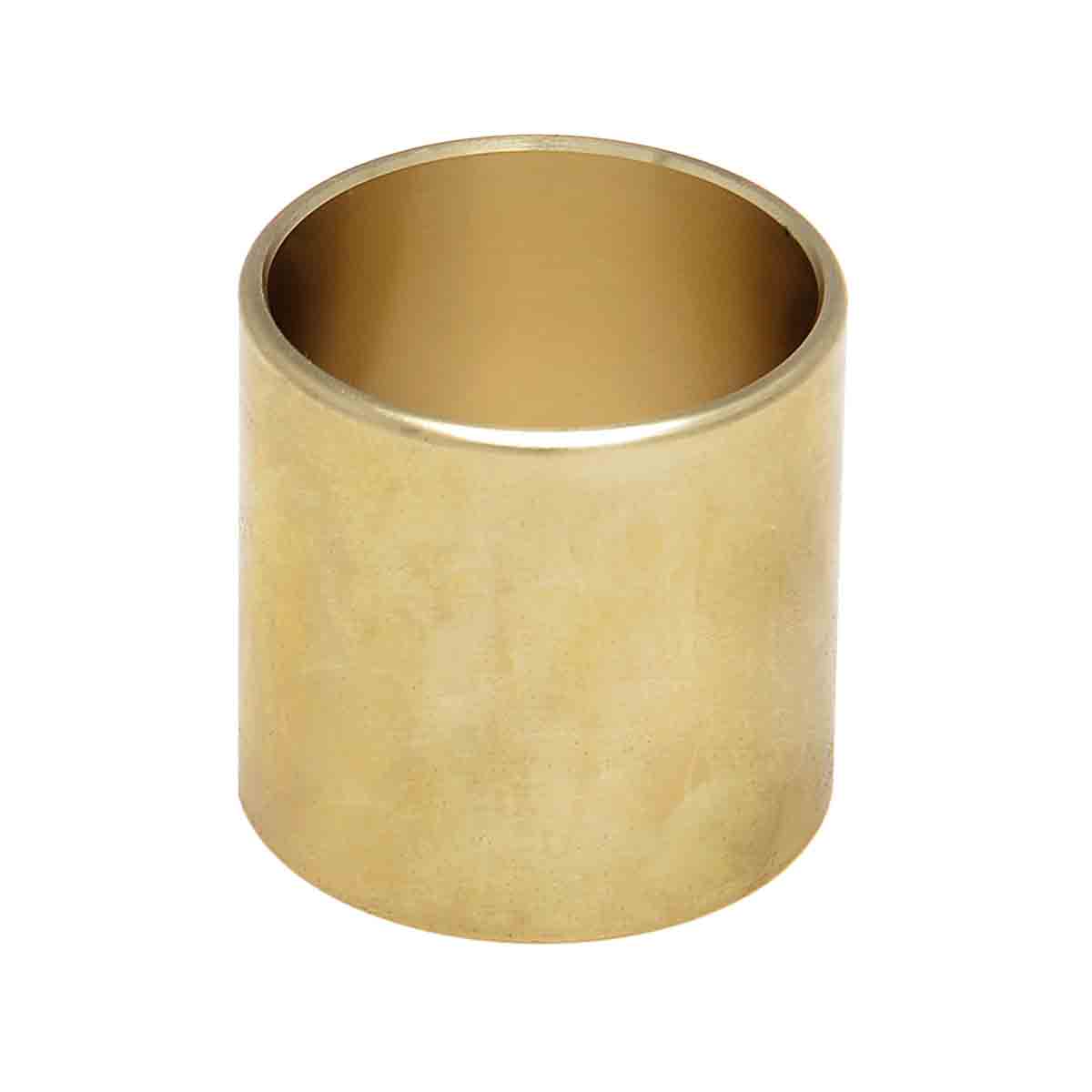

KPMI® has developed what we believe to be the highest quality wrist pin bushings available. Our wrist pin bushings are machined from a proprietary solid Nickel Bronze alloy, with an exceptional Rockwell hardness rating. These bushings are a must for all High Performance applications.
| Material | Nickel Bronze |

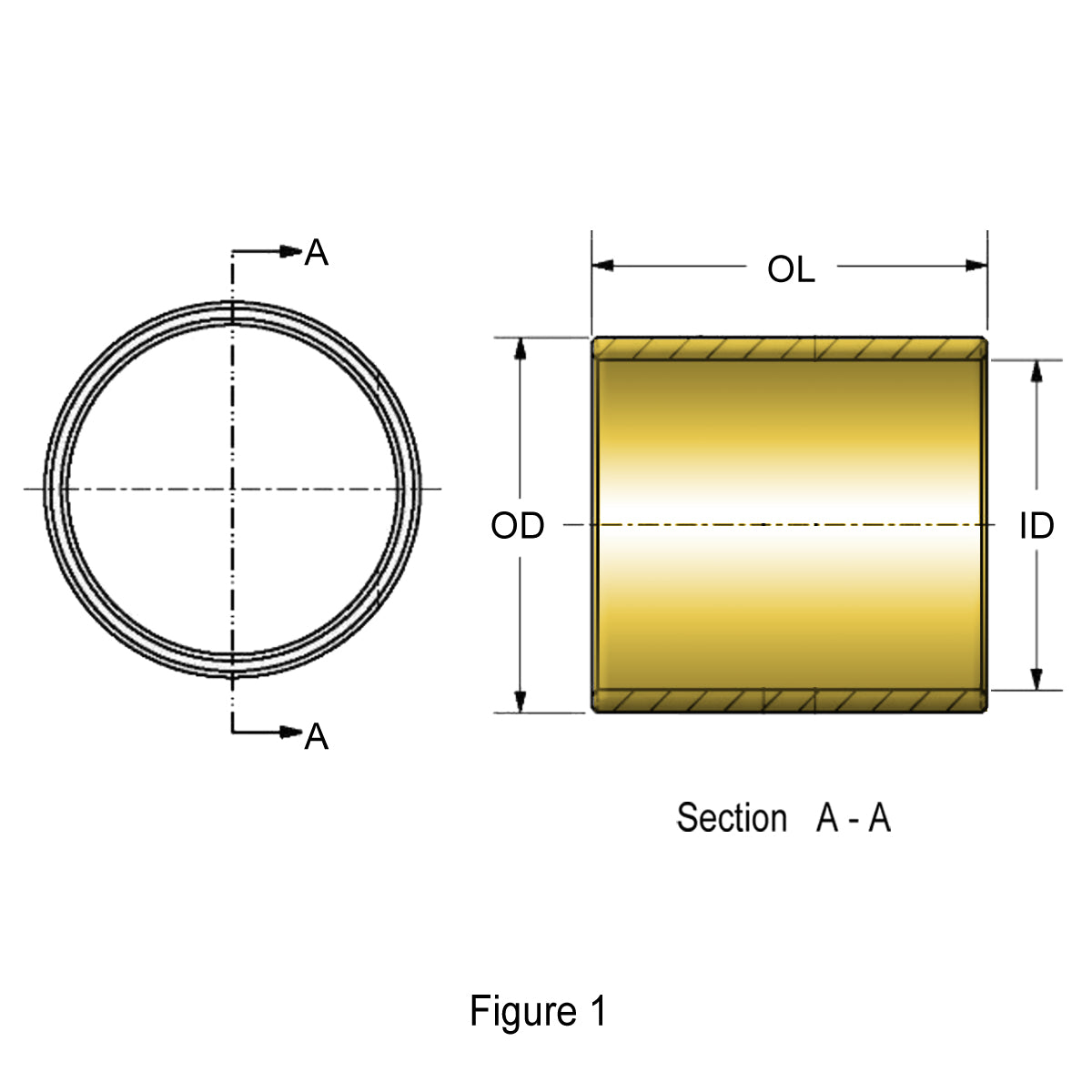

| Reference | See Figure 1 |
| Quantity | Pkg. of 1 |
| Outside Diameter | 0.9515" / Std. |
| Inside Diameter | 0.8555" |
| Overall Length | 0.9325" |
| Note | These wrist pin bushings have been machined from solid nickel bronze bar stock with a superior surface finish and are designed to be direct OEM replacements. The nickel content gives these bushings improved wearability when compared to the OEM bushing. All of these bushings are 100% quality controlled. |
| Unique Identifier No. | FR327789_01GAUS |
