Bushing, Wrist Pin, Small End, Various Triumph® Applications

Bushing, Wrist Pin, Small End, Various Triumph® Applications


Regular price $16.50 USD
Regular price $16.50 USD Sale price $16.50 USD
Sale Sold out

California Prop 65

Triumph® Pre-Unit 500 & 650's 1951-1962
Triumph® 650 / 750 1963-1983

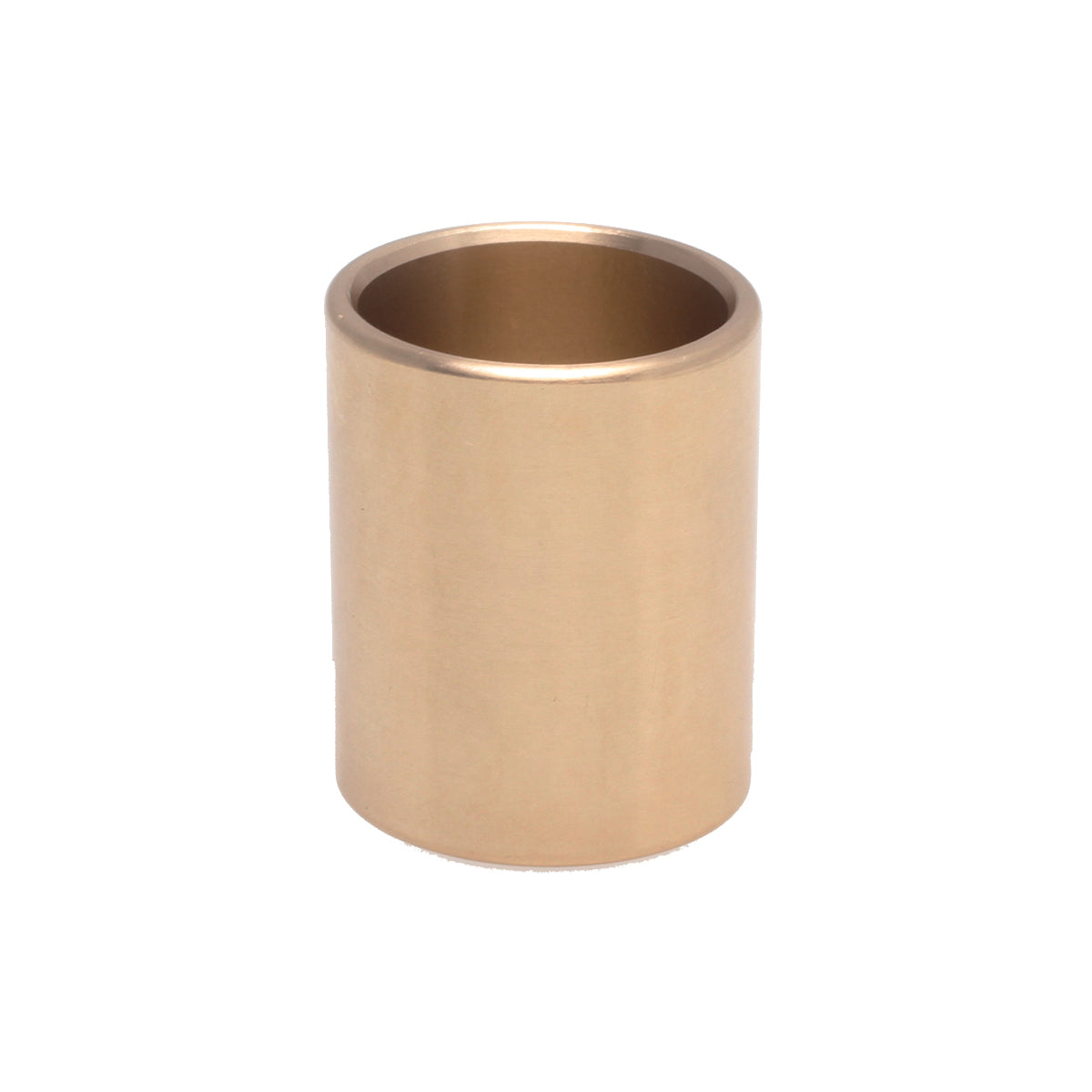

Designed and manufactured by KPMI® to original OEM dimensions with Kibblewhite Quality and Precision. Wrist Pin Bushings need the correct combination of characteristics to perform properly in their high load environment. These bushings have excellent anti friction qualities, as well as good hardness, and resistance to wear and deformation under high loads. KPMI® Wrist Pin Bushings are held to tight dimensional tolerances, offer excellent machinability so that the optimum surface finish may be obtained, and have a tapered lead on each end to ease installation. These wrist pins will meet or exceed fitment and wear ability of all other replacement style bushings available.

Material Manganese Bronze
Type Rod (Small End)

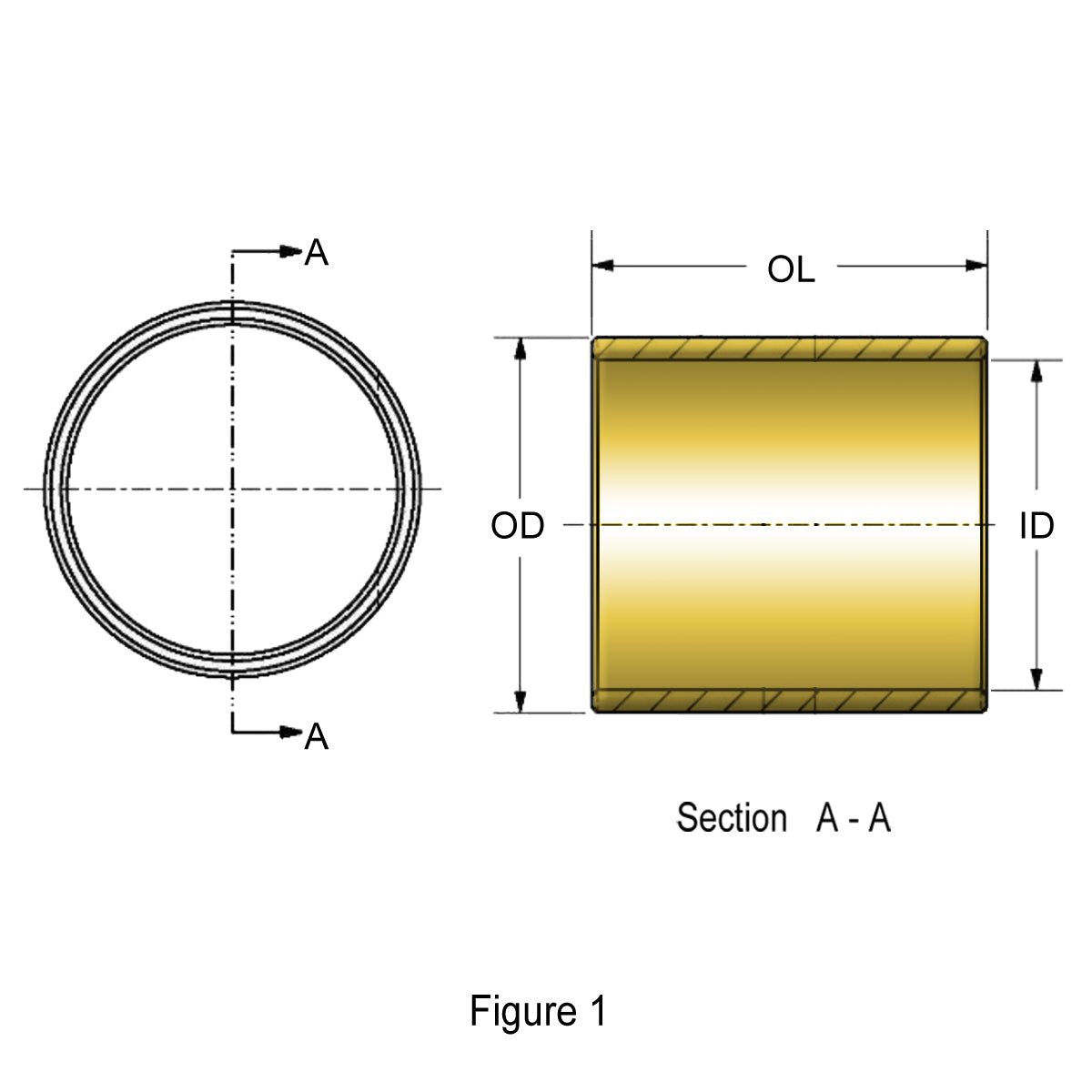

Reference See Figure 1
Quantity Pkg. of 1
Outside Diameter 0.815"
Inside Diameter 0.6885"
Overall Length 1.031"
Unique Identifier No. FR327789_01GAUS
