Bushing, Rocker, Std, Various HD® Applications
Bushing, Rocker, Std, Various HD® Applications
SKU:20-2106
Couldn't load pickup availability
Harley-Davidson® Sportster™ 1957-1969
Harley-Davidson® Sportster™ 1970-1983
Harley-Davidson® Evolution 1984-1999
Harley-Davidson® Shovelhead 74" 1966-1977
Harley-Davidson® Shovelhead 80" 1978-1983
Harley-Davidson® Sportster 833cc 1986-2021
Harley-Davidson® Sportster 1200cc 1988-2021
Harley-Davidson® XL 1100cc 1986-1987
Rocker arm bushings need the correct combination characteristics to perform properly in their high load environment. KPMI® tested and analyzed several bearing-bronze materials for anti friction qualities, hardness, and resistance to deformation under high loads. Our bronze rocker bushing material meets the high standards we set for success in all of these areas. KPMI® Rocker arm bushings are held to tight dimensional tolerances, have an excellent surface finish, machine well, and have a tapered lead on each end to ease installation.
| Material | Manganese Bronze |

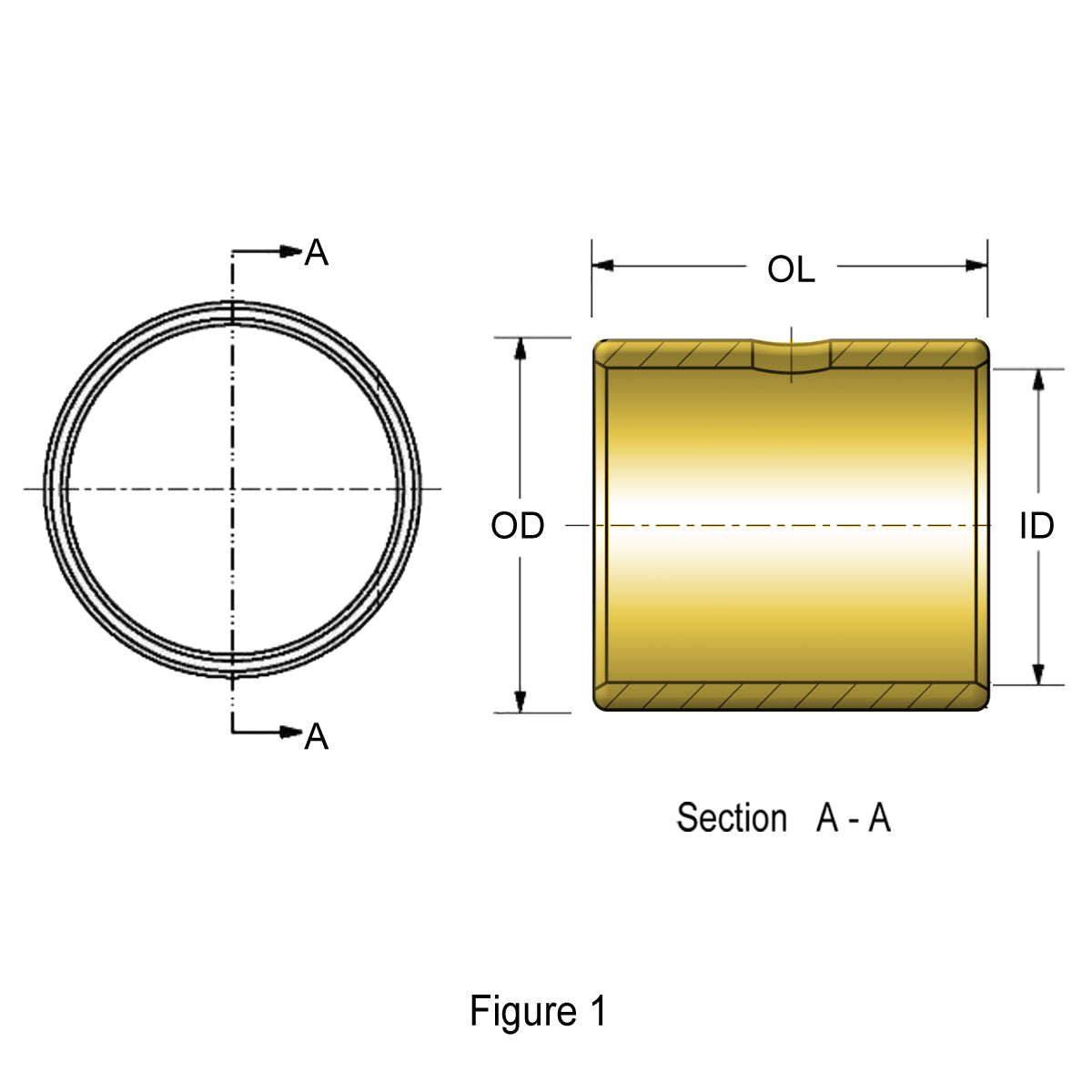

| Reference | See Figure 1 |
| Quantity | Various |
| Outside Diameter | 0.6795" |
| Inside Diameter | 0.548" |
| Overall Length | 0.530" |
| Unique Identifier No. | FR327789_01GAUS |
