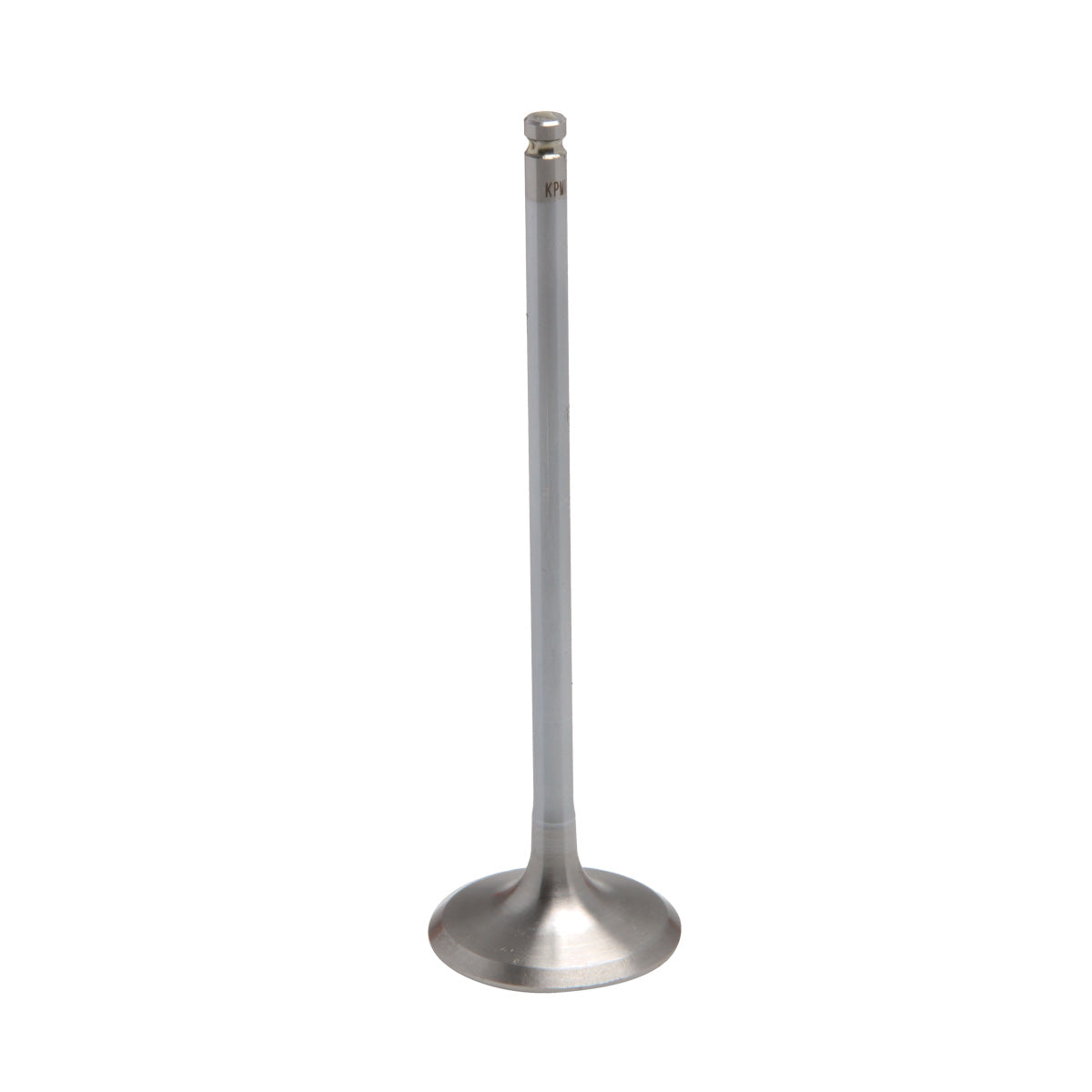

Valve, White Diamond® Stainless, O/S Intake, Rotax®, ACE 900cc, Triple Engines, 2014-2025
Valve, White Diamond® Stainless, O/S Intake, Rotax®, ACE 900cc, Triple Engines, 2014-2025
SKU:91-91313H
Couldn't load pickup availability
Maverick X3™ (Max / Turbo's) 2017-2018
Maverick™ (Max / Turbo's) 2019-2025
Spark™ (ACE / 900 / HO / TRIXX) 2014-2025
GTI-GTR-GTS™ 2017
GTI™ 90 2018-2022
GTS™ 90 2018
We fully CNC machine our White Diamond® Valves from a one-piece forging of either EV8 Stainless Steel or Inconel-751. These materials have proven heat and corrosion resistance properties. Each valve is designed using Finite Element Analysis software, and profiles are tested on our computerized flow bench. Strict attention is paid to the surface preparation of the valves, and the purity of the chrome is closely monitored. A 360 degree anode is used to produce the highest possible grade of hard chrome finish. White Diamond® Valves are light, strong, one-piece forgings with profiles that provide excellent flow characteristics.
| Type | Intake |
| Material | White Diamond® Stainless |
| Coating | Hard Chrome |
| Quantity |
Pkg. of 1 |
| Head Diameter | 30.00mm / 1.181" |
| Stem Diameter | 5.0mm / 0.1960" |
| Tulip | 15° |
| Overall Length | 3.295" |
| Remarks | Oversize |
| Unique Identifier No. | FR327789_01GAUS |
