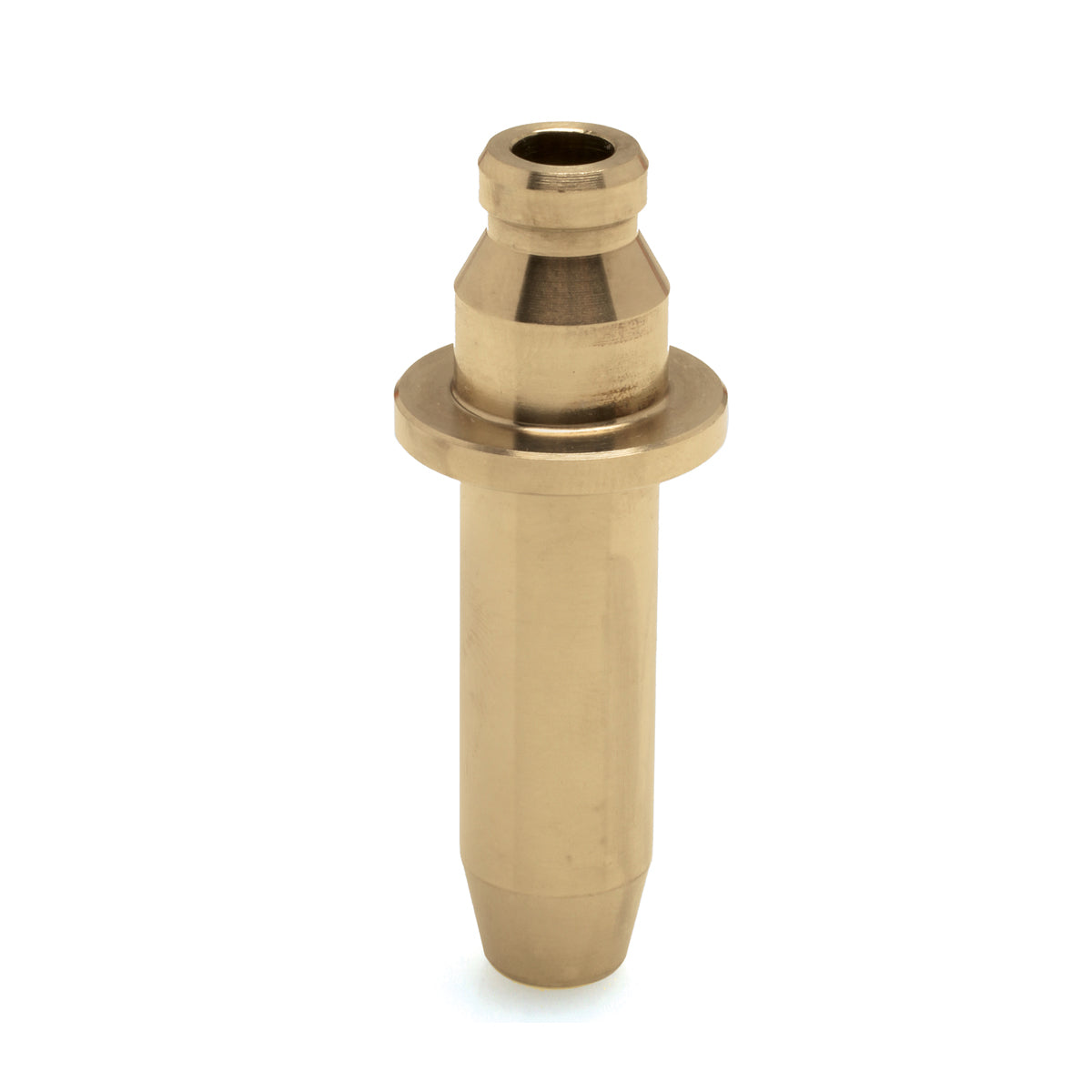

Guide, C630, Intake/ Exhaust, Various Honda® Applications
Guide, C630, Intake/ Exhaust, Various Honda® Applications
SKU:30-4069
Couldn't load pickup availability
Honda® ATC 185 / ATC 200 1980-1986
Honda® XL/XR 200R / XR 200 (non-RFVC) 1980-2002
We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
Click Here to Download KPMI® Guide Sizing Tool Flyer
Click Here to Download KPMI® Seal Catalog
| Quantity | Pkg. of 1 |
| Type | Intake/ Exhaust |

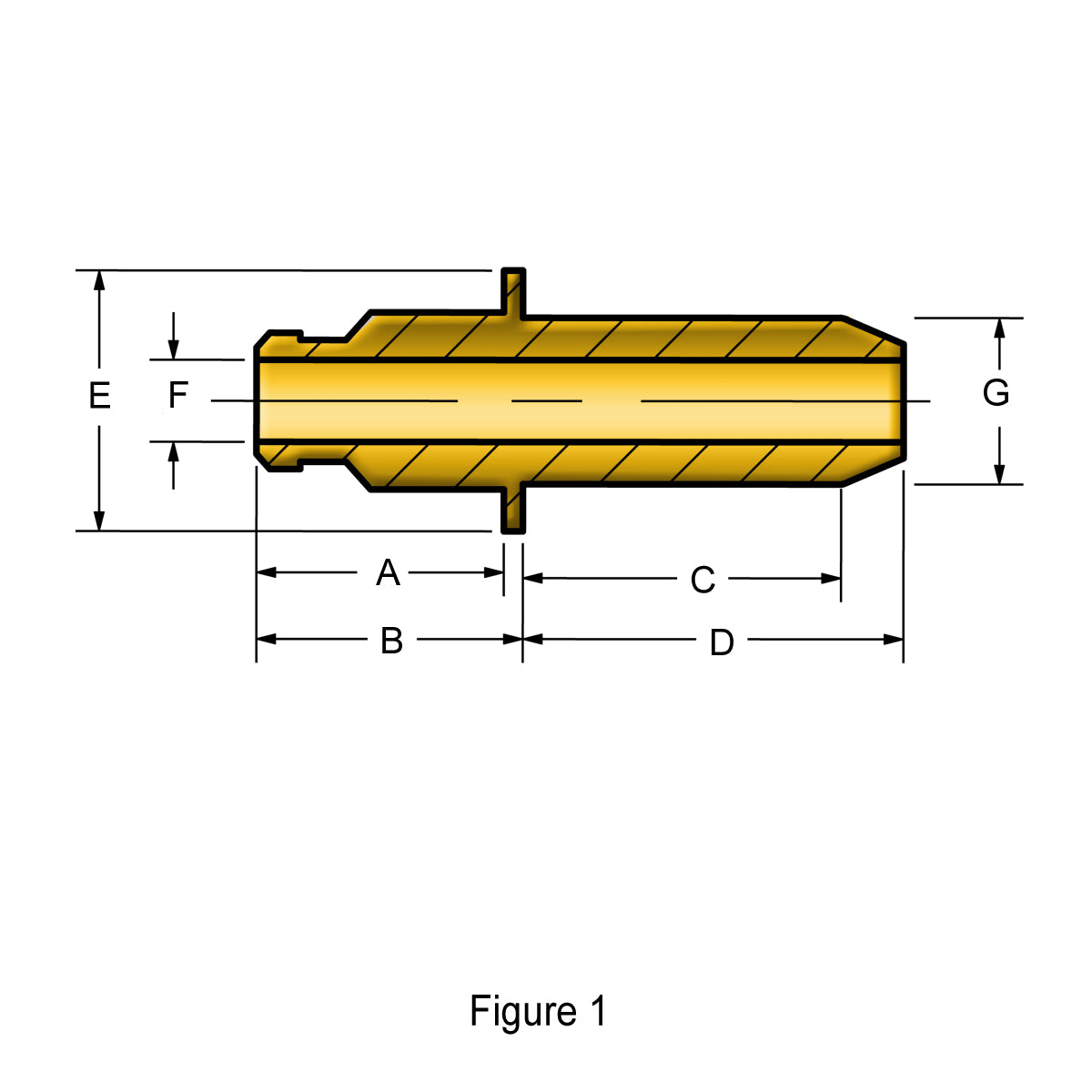

| Outside Dia. (G) | 0.4372" (Std.)/ 0.4412" (+0.004")/ 0.4522" (+0.015") |
| A | 0.550" |
| B | 0.650" |
| C | 0.890" |
| D | 1.050" |
| E | 0.685" |
| F | 0.2155" |
| Unique Identifier No. | FR327789_01GAUS |
